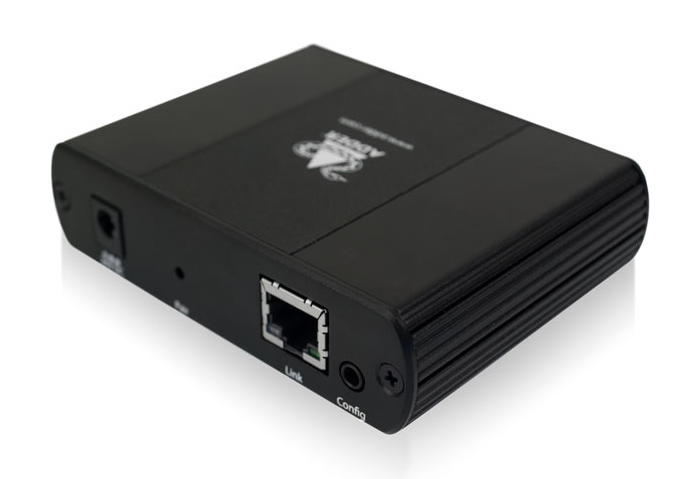

ADDER - C-USB-LAN-R
USB 2.0 Receiver over GbE LAN
Catalogusprijs:
€ 439,00*
Dealer prijs - Aanmelden
Levertijd: Momenteel ongeveer 3-4 weken
Prijzen voor grotere hoeveelheden op aanvraag.
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Artikelnummer van de fabrikant:
C-USB-LAN-RX
Ons artikelnummer:
490507
Vragen? Wij adviseren u graag! → Contactformulier
Productinformatie "ADDER - C-USB-LAN-R"
ADDER C-USB-LAN is a powerful USB extender that allows you to place your critical computer hardware outside the user workstation while maintaining the original user desktop experience. It can transmit USB 2.0 over a single CATx cable or over a 1GbE IP network.
Requires transmitter (Transmitter unit) - ADDER C-USB-LAN-T
Scope of delivery: C-USB-LAN receiver, power supply unit
Requires transmitter (Transmitter unit) - ADDER C-USB-LAN-T
- Transparent USB 2.0 operation
- 100m extension distance
- Switchable and routable
- USB2.0 Hi-Speed for mass storage devices plus
- USB 2.0 (low and full speed) for keyboard, mouse, tablet and touch screen
- Supports USB3.0 controllers
- Isochronous support for audio devices and webcams
- Plug and Play
Scope of delivery: C-USB-LAN receiver, power supply unit
| Keyboard & Mouse: | USB |
|---|---|
| Option: | Audio, Network, Point-to-Point |
| Port Number: | 4 Ports |
Features
USB 2.0
Allows connection of all USB user interface devices - from mice and keyboards to touch screens, graphics tablets, jog shuttles, joysticks and 3D explorers. Mass storage devices and isochronous devices such as webcams and headsets can also be used.
Transparent operation
Once connected, operation is completely transparent to the host system, USB peripherals and you, the user. No drivers need to be installed and your USB devices work exactly as before. The only difference is that they are now up to 100 meters away from the host. No drivers or software need to be installed.
Plug and Play
ADDER C USB LAN extenders are supplied in zero configuration state, so you can plug them in and start using them straight away. When supplied in pairs, they are already synchronised so they automatically locate themselves over your network.
Integrated AIM control
The C-USB LAN can be controlled and switched via the ADDERLink INFINITY Manager (AIM) or operated separately as a point-to-point USB extender with a single CATx cable length.
API
An API is available to support all functions that can be used to connect authorised third-party control systems.
Support for audio devices
With isochronous support, the C-USB LAN works with USB microphones and headsets as well as web cams.
USB 2.0
Allows connection of all USB user interface devices - from mice and keyboards to touch screens, graphics tablets, jog shuttles, joysticks and 3D explorers. Mass storage devices and isochronous devices such as webcams and headsets can also be used.
Transparent operation
Once connected, operation is completely transparent to the host system, USB peripherals and you, the user. No drivers need to be installed and your USB devices work exactly as before. The only difference is that they are now up to 100 meters away from the host. No drivers or software need to be installed.
Plug and Play
ADDER C USB LAN extenders are supplied in zero configuration state, so you can plug them in and start using them straight away. When supplied in pairs, they are already synchronised so they automatically locate themselves over your network.
Integrated AIM control
The C-USB LAN can be controlled and switched via the ADDERLink INFINITY Manager (AIM) or operated separately as a point-to-point USB extender with a single CATx cable length.
API
An API is available to support all functions that can be used to connect authorised third-party control systems.
Support for audio devices
With isochronous support, the C-USB LAN works with USB microphones and headsets as well as web cams.
Technical details
Hardware compatibility
All computers with USB
USB 2.0
Supports USB 2.0 devices (low, full and high speed). Isochronous devices are supported
Software compatibility
All known operating systems
Connections
Physical design
Compact housing, robust metal construction. 100 mm (W), 26 mm (1.0 inch (h)), 76 mm (3.0 inch (d)), 0.2 kg (0.4 lbs) each.
Power supply (RX only)
DC socket (1 x power supply included for RX), 100-240 VAC, 50/60 Hz, 0.7 A, input to power supply, 24 V DC, 24 W output of power supply, provides up to 600 mA per USB connection
Operating temperature
0 to 50ºC / 32 to 122ºF
Approvals
CE, FCC
Hardware compatibility
All computers with USB
USB 2.0
Supports USB 2.0 devices (low, full and high speed). Isochronous devices are supported
Software compatibility
All known operating systems
Connections
- Transmitter (TX): USB type B, configuration connector, 8p8c ethernet connector.
- Receiver (RX): USB type A x 4, configuration connector, 8p8c ethernet connector and 2.1 mm female socket
Physical design
Compact housing, robust metal construction. 100 mm (W), 26 mm (1.0 inch (h)), 76 mm (3.0 inch (d)), 0.2 kg (0.4 lbs) each.
Power supply (RX only)
DC socket (1 x power supply included for RX), 100-240 VAC, 50/60 Hz, 0.7 A, input to power supply, 24 V DC, 24 W output of power supply, provides up to 600 mA per USB connection
Operating temperature
0 to 50ºC / 32 to 122ºF
Approvals
CE, FCC
