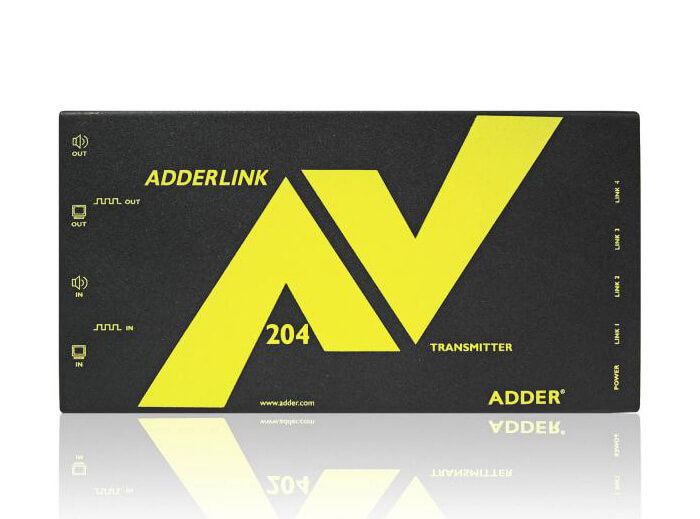

ADDERLink - ALAV204T
Full HD Digital Signage VGA Transmitter with RS232
Artikelnummer van de fabrikant:
ALAV204T
Ons artikelnummer:
490028
Vragen? Wij adviseren u graag! → Contactformulier
Product is End of Life!
Vervolgproduct:
Productinformatie "ADDERLink - ALAV204T"
ADDER's new range of audio-video extenders delivers high-resolution crystal-clear digital stereo audio in video and CD quality for installations up to 600 meters wide or point-to-point of 300 meters. With full RS232 support, video display panels can be remotely controlled and interrogated. This makes the AV200 series the ideal professional narrowcast digital signage solution.
Requires Receiver Unit - ADDERLink - ALAV201R
The AV200 series comes complete with ADDER DM (Display Manager) software. This advanced application allows you to control screen power, video and audio from the transmitter and query the status and dynamics of the video panel. Due to ADDER's "Open Architecture" policy, you can continue to use any third-party signage system for the entire AV200 series.
Scope of delivery: AdderLink AV204T transmitter, power supply unit, rubber feet, CD-ROM with test pattern and documentation.
Optional accessories:
Requires Receiver Unit - ADDERLink - ALAV201R
The AV200 series comes complete with ADDER DM (Display Manager) software. This advanced application allows you to control screen power, video and audio from the transmitter and query the status and dynamics of the video panel. Due to ADDER's "Open Architecture" policy, you can continue to use any third-party signage system for the entire AV200 series.
Scope of delivery: AdderLink AV204T transmitter, power supply unit, rubber feet, CD-ROM with test pattern and documentation.
Optional accessories:
- ALAV-RMK-CHASSIS: Series rack-mount enclosure
- ALAV-RMK-FASCIA: Rack-mounting plate for local/remote unit
| Graphic Port: | VGA |
|---|
Features
- Crystal clear digital audio quality at 44.1 kHz stereo
- Sharp, crisp and fully saturated video quality even at 300 meters
- Resolution up to 1920x1080 at 60Hz
- Compact size
- Compact rack-mount housing for large installations
- Receiver units with fully adjustable tilt to ensure maximum video quality
- Cascade transmitter to support up to 64 display devices from a single source
- Dual video / audio output on receiver supports back-to-back monitor applications
Technical details
Video resolutions
HD 1920 x 1080 at distances up to 100 meters, 1280 x 1024 at distances up to 300 meters. Extension distance With CATx up to 300 meters (x = 5.5e, 6.7).
Extension technology
Differential analogue signalling for video signals.
Cable equalisation
Finely adjustable cable equalisation amplifiers allow independent adjustment of video sharpness and brightness using the rotary controls on the side of the receiver units.
Integral DeSkew (ADDERLink AV201R only)
The settings for skew compensation can be made with the two dials on the ADDERLink AV201R receiver unit. The first dial affects the relationship between green and blue colour signals, the second red and green. Cable offset is generated due to wire length differences between different twisted pairs in a CATx cable, which occur due to the different twisting rates used to reduce signal crosstalk. The amount of cable misalignment depends on the type of cable used and the cable length. The ADDERLink AV201R offers up to 62 ns DeSkew with a fine resolution of 2 ns. This means that high-resolution video can be deSkewed accurately even at long cable distances. The DeSkew supports 300 MHz bandwidths, which means that the DeSkew function does not affect video quality.
Display Management via RS232
The Display Management software included in AV200 transmitters provides users with control and interaction with display devices via the built-in RS232 ports. This enables bi-directional and automated communication with individual screens, groups of screens or all screens simultaneously.
Indicators
The remote and local units have two indicators; red indicates the presence of power in the module, green indicates the presence of a video input.
Audio
Transmitted as a digital signal to ensure high fidelity and low noise levels. Phase-locked sampling clocks ensure that no unwanted clicks occur when no sound is playing.
Rack-mount options
Both the local (computer end) and remote (display end) units can be rack mounted in the ADDERLink AV Series rack enclosure. The enclosure allows 16 units (ALAV200T, 200R and 201R) or 8 units (ALAV204T and 208T) to be mounted in 3U of 19-inch rack space. The units are mounted using the optional rack front panel.
Connectors (ADDERLink AV 200T)
Connectors (ADDERLink AV 201R)
Connectors (ADDERLink AV 208T)
Physical design
Power
All ADDERLink AV units are powered by an external 5.3 V DC, 2 A power supply with IEC power cable connection. A country-specific power cable is supplied. Alternatively, 4 units can be powered by a 5.3 V DC, 4 A power supply and the ADDER squid cable.
Spike suppression
All AdderLink AV units are equipped with spike suppression circuitry.
Display data channel
DDC signalling is supported to allow the computer to communicate with the local monitor to configure its graphics card for optimal operation.
Package contents
All AdderLink AV Series are supplied with the required IEC power supply and mains cable, a safety and installation booklet, a CD manual and stick-on rubber feet. (Note: Rack panels are not included and must be purchased separately if required.
Approvals
FCC Class A, CE marked.
Power
Operating temperature
0 - 40 ° C (32 to 104 ° F)
Humidity tolerance
5 to 60% non-condensing
Video resolutions
HD 1920 x 1080 at distances up to 100 meters, 1280 x 1024 at distances up to 300 meters. Extension distance With CATx up to 300 meters (x = 5.5e, 6.7).
Extension technology
Differential analogue signalling for video signals.
Cable equalisation
Finely adjustable cable equalisation amplifiers allow independent adjustment of video sharpness and brightness using the rotary controls on the side of the receiver units.
Integral DeSkew (ADDERLink AV201R only)
The settings for skew compensation can be made with the two dials on the ADDERLink AV201R receiver unit. The first dial affects the relationship between green and blue colour signals, the second red and green. Cable offset is generated due to wire length differences between different twisted pairs in a CATx cable, which occur due to the different twisting rates used to reduce signal crosstalk. The amount of cable misalignment depends on the type of cable used and the cable length. The ADDERLink AV201R offers up to 62 ns DeSkew with a fine resolution of 2 ns. This means that high-resolution video can be deSkewed accurately even at long cable distances. The DeSkew supports 300 MHz bandwidths, which means that the DeSkew function does not affect video quality.
Display Management via RS232
The Display Management software included in AV200 transmitters provides users with control and interaction with display devices via the built-in RS232 ports. This enables bi-directional and automated communication with individual screens, groups of screens or all screens simultaneously.
Indicators
The remote and local units have two indicators; red indicates the presence of power in the module, green indicates the presence of a video input.
Audio
Transmitted as a digital signal to ensure high fidelity and low noise levels. Phase-locked sampling clocks ensure that no unwanted clicks occur when no sound is playing.
Rack-mount options
Both the local (computer end) and remote (display end) units can be rack mounted in the ADDERLink AV Series rack enclosure. The enclosure allows 16 units (ALAV200T, 200R and 201R) or 8 units (ALAV204T and 208T) to be mounted in 3U of 19-inch rack space. The units are mounted using the optional rack front panel.
Connectors (ADDERLink AV 200T)
- 1 x blue 15-pin high-density D-type socket for video input.
- 1 x light green 3.5 mm audio jack for audio input
- 1 x 9-pin D-type socket for serial input
- 1 x blue high-density 15-pin D-type female connector for video output
- 1 x light green 3.5mm audio jack for audio output
- 1 x RJ45 connector for CATx cable connection
- 2.5 mm DC socket for power supply.
Connectors (ADDERLink AV 201R)
- 2 x blue 15-pin high-density D-type socket for video output
- 2 x light green 3.5 mm audio jack for audio output
- 1 x 9-pin D-type socket for serial output (use a splitter cable for two serial connections)
- 1 x RJ45 connector for CATx cable connection
- 2.5 mm DC socket for power supply.
Connectors (ADDERLink AV 208T)
- 1 x blue 15-pin high-density D-type socket for video input.
- 1 x light green 3.5 mm audio jack for audio input
- 1 x 9-pin D-type socket for serial input
- 1 x blue high-density 15-pin D-type female connector for video output
- 1 x light green 3.5mm audio jack for audio output
- 1 x 9-pin D-type socket for serial output to the additional ADDERLink AV 204T or AV 208T
- 8 x RJ45 connectors for CATx cable connections
- 2.5 mm DC socket for power supply.
Physical design
- ADDERLink AV 200T and 201R metal housing (steel and stainless steel), 98 mm x 95 mm x 25 mm.
- ADDERLink AV 208T Metal housing (steel and stainless steel), 185 mm x 95 mm x 51 mm.
Power
All ADDERLink AV units are powered by an external 5.3 V DC, 2 A power supply with IEC power cable connection. A country-specific power cable is supplied. Alternatively, 4 units can be powered by a 5.3 V DC, 4 A power supply and the ADDER squid cable.
Spike suppression
All AdderLink AV units are equipped with spike suppression circuitry.
Display data channel
DDC signalling is supported to allow the computer to communicate with the local monitor to configure its graphics card for optimal operation.
Package contents
All AdderLink AV Series are supplied with the required IEC power supply and mains cable, a safety and installation booklet, a CD manual and stick-on rubber feet. (Note: Rack panels are not included and must be purchased separately if required.
Approvals
FCC Class A, CE marked.
Power
- Operating voltage: 100-240VAC
- Mains frequency: 50-60Hz
- Usage: 5VDC at 500mA
Operating temperature
0 - 40 ° C (32 to 104 ° F)
Humidity tolerance
5 to 60% non-condensing
