ADDERLink - CUSBEXT100
C-USB 2.0 Extender over CATx cable
Artikelnummer van de fabrikant:
CUSBEXT100
Ons artikelnummer:
490403
Vragen? Wij adviseren u graag! → Contactformulier
Product is End of Life!
Vervolgproduct:
We will find a suitable replacement product for your requirements - please contact our sales department.
Productinformatie "ADDERLink - CUSBEXT100"

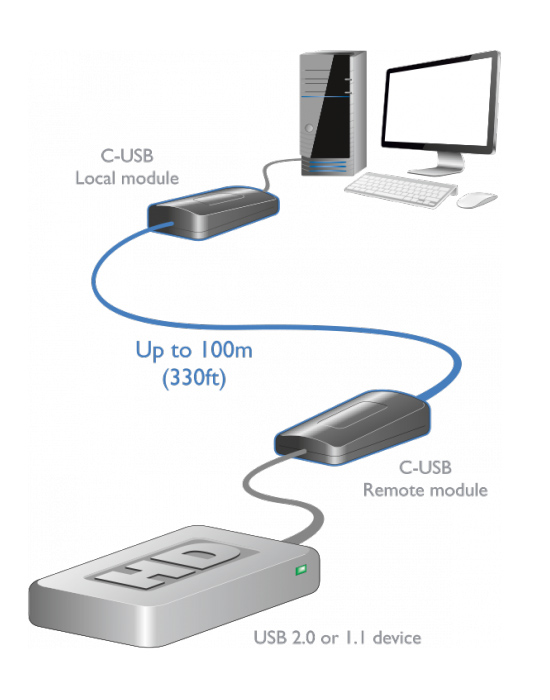

The ADDERLink C-USB extender set provides a quick and easy way to place your USB devices up to 100 meters away from a host system. Consisting of two compact modules and an auto-sensing power supply, the AdderLink C-USB extender set is physically unobtrusive and completely transparent in operation. USB 2.0 devices (high-speed, low-speed, full-speed) including isochronous communication are fully supported.
- Set consisting of transmitter and receiver
Features
Compact, easy to mount
The ADDERLink C-USB modules integrate quickly and easily into your existing configuration. Each module measures just 87 x 57 x 30 mm and has side slots so they can be cabled to most surfaces.
Complete support for your USB devices
To ensure that ADDERLink C-USB offers maximum flexibility, we have worked hard to ensure that all types of USB 2.0 or 1.1 devices are supported. Regardless of which transfer modes your USB devices need to use, you're covered.
For example:
Once connected, operation is completely transparent to the host system, USB peripherals and you, the user. There are no drivers to install and your USB devices will work exactly as before. The only difference is that they are now up to 100 meters away from the host.
Usable with all operating systems
The AdderLink C-USB modules are completely independent of any operating system and are therefore compatible with all of them.
Flexible performance
The entire system can be powered from either side. Thanks to a clever electronic design, you can connect the supplied power supply to either the local or remote module, as is most convenient for your installation. In either case, a full 500 mA of power is provided to your USB peripheral. The power supply is fully auto-sensing, so it can be matched to any mains input from 100 to 240 VAC.
Easy-to-understand indicators
Each module has a single green indicator. Only when the power supply, cable connection and USB connection of the host are valid, the green indicator on each module lights up.
Compact, easy to mount
The ADDERLink C-USB modules integrate quickly and easily into your existing configuration. Each module measures just 87 x 57 x 30 mm and has side slots so they can be cabled to most surfaces.
Complete support for your USB devices
To ensure that ADDERLink C-USB offers maximum flexibility, we have worked hard to ensure that all types of USB 2.0 or 1.1 devices are supported. Regardless of which transfer modes your USB devices need to use, you're covered.
For example:
- Isochronous mode for video devices
- Keyboard interrupt mode
- Hard disk mass transfer mode
Once connected, operation is completely transparent to the host system, USB peripherals and you, the user. There are no drivers to install and your USB devices will work exactly as before. The only difference is that they are now up to 100 meters away from the host.
Usable with all operating systems
The AdderLink C-USB modules are completely independent of any operating system and are therefore compatible with all of them.
Flexible performance
The entire system can be powered from either side. Thanks to a clever electronic design, you can connect the supplied power supply to either the local or remote module, as is most convenient for your installation. In either case, a full 500 mA of power is provided to your USB peripheral. The power supply is fully auto-sensing, so it can be matched to any mains input from 100 to 240 VAC.
Easy-to-understand indicators
Each module has a single green indicator. Only when the power supply, cable connection and USB connection of the host are valid, the green indicator on each module lights up.
Technical details
Hardware compatibility
All computers with USB 2.0 or 1.1 ports. All USB 2.0 or 1.1 peripherals.
Software compatibility
All known operating systems.
USB transfer speeds
0 to 50ºC / 32 to 122ºF.
Operating humidity
20 to 80% relative humidity, non-condensing.
Physical design
Compact ABS housing with rubberised coating:
100-240 VAC 50/60 Hz, 0.6 A, input to power supply unit. 24VDC 1A output from power supply. Each module can accept power input from the adapter.
Approvals
CE, FCC, RoHS2.
Hardware compatibility
All computers with USB 2.0 or 1.1 ports. All USB 2.0 or 1.1 peripherals.
Software compatibility
All known operating systems.
USB transfer speeds
- USB 2.0 Up to 480 Mbps.
- USB 1.1 Up to 12 Mbps.
- Isochronous communication is supported
- 1 x USB type B socket
- 1 x RJ45 socket
- 1 x 2.1 mm DC socket
- 1 x USB type A socket
- 1 x RJ45 socket
- 1 x 2.1 mm DC socket
0 to 50ºC / 32 to 122ºF.
Operating humidity
20 to 80% relative humidity, non-condensing.
Physical design
Compact ABS housing with rubberised coating:
- 87 mm / 3.42 in (W) x 57 mm (2.25 in) (d) x 30 mm (1.12 in) (h).
- Weight (Tx) 60 g
- Weight (Rx) 72 g
100-240 VAC 50/60 Hz, 0.6 A, input to power supply unit. 24VDC 1A output from power supply. Each module can accept power input from the adapter.
Approvals
CE, FCC, RoHS2.
