ADDERLink - INFINITY 2124T
High performance IP KVM Extender
Catalogusprijs:
€ 1.516,00*
Dealer prijs - Aanmelden
Nog 3 stuks beschikbaar, levertijd: Uit voorraad, onmiddellijk beschikbaar
Prijzen voor grotere hoeveelheden op aanvraag.
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Artikelnummer van de fabrikant:
ALIF2124T
Ons artikelnummer:
490561
Vragen? Wij adviseren u graag! → Contactformulier
Productinformatie "ADDERLink - INFINITY 2124T"
Dual-head digital video, audio, and USB2.0 over 1GbE IP network.
The ADDERLink INFINITY 2124T (ALIF2124T) is a high performance IP KVM (Keyboard, Video and Mouse) extender that forms part of the ADDERLink INFINITY matrix solution. This enables the relocation of critical computing hardware into a secure and temperature controlled environment away from the user work station; while maintaining a pixel-perfect desktop experience.
Scope of delivery: ADDER - INFINITY 2124T, power cable, IEC power supply cable, HDMI cable, 2x USB cable
The ADDERLink INFINITY 2124T (ALIF2124T) is a high performance IP KVM (Keyboard, Video and Mouse) extender that forms part of the ADDERLink INFINITY matrix solution. This enables the relocation of critical computing hardware into a secure and temperature controlled environment away from the user work station; while maintaining a pixel-perfect desktop experience.
Scope of delivery: ADDER - INFINITY 2124T, power cable, IEC power supply cable, HDMI cable, 2x USB cable
| Audio : | Encoder (Audio -> IP) |
|---|---|
| Graphic Port: | HDMI |
| Power Supply: | 12V DC |
| Temperature Range: | Standard Temperature Range |
Features
Standard IP Technology
Using standard IP technology allows a choice of CATx or fiber connections (1x RJ45 1GbE SFP module included). Resilience is offered by the optional 2nd network port which provides teaming facility for load balanced and critical systems.
Perfect Digital Video, Real-Time Control
Using a spatially-lossless encoding system, with 1:1 pixel mapping, the ALIF2124 provides pixel-perfect and color accurate video with no artifacts. The digital video received is the same as the digital video leaving the remote computer.

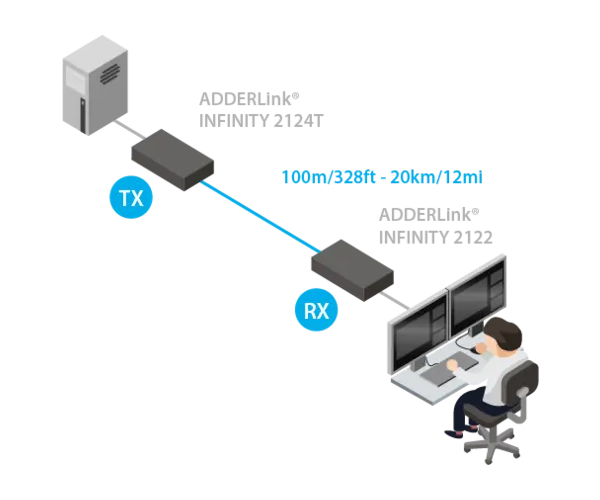

Unlimited Extension Distances
Extension distance is not limited to a single 100 meter cable length. If you need to extend further, simply add a 1GbE network device to achieve an additional 100 meters, which can be repeated many times. Also fitted with SFP cages to accept fiber optic transceivers for much greater distances.
USB 2.0 with Class Control
Supports USB devices including graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices. For secure applications, the system can disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices.
Flexible and Scalable Extender or Switch
Each ALIF2000 series unit can be configured as a simple extender or self-managed distributed KVM switch. Each receiver can see up to 16 sources and rapidly switch between them.
ADDERLink INFINITY Matrix
With the addition of ADDERLink® INFINITY Management (AIM) system, you can turn multiple point-to-point extenders into a scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network.
EDID Management
Intelligent EDID management allows the true characteristics of the monitor to be passed back to the computer. This ensures perfect video display without additional configuration.
Plug and Play
ADDERLink INFINITY devices are delivered in a zero config state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.
Redundant Network Operation
The units support network teaming allowing for full network redundancy and increased resilience for mission-critical applications.
Digital Audio
The ALIF2000 series supports two channel digital audio input via USB and the digital video connector.
Standard IP Technology
Using standard IP technology allows a choice of CATx or fiber connections (1x RJ45 1GbE SFP module included). Resilience is offered by the optional 2nd network port which provides teaming facility for load balanced and critical systems.
Perfect Digital Video, Real-Time Control
Using a spatially-lossless encoding system, with 1:1 pixel mapping, the ALIF2124 provides pixel-perfect and color accurate video with no artifacts. The digital video received is the same as the digital video leaving the remote computer.
Unlimited Extension Distances
Extension distance is not limited to a single 100 meter cable length. If you need to extend further, simply add a 1GbE network device to achieve an additional 100 meters, which can be repeated many times. Also fitted with SFP cages to accept fiber optic transceivers for much greater distances.
USB 2.0 with Class Control
Supports USB devices including graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices. For secure applications, the system can disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices.
Flexible and Scalable Extender or Switch
Each ALIF2000 series unit can be configured as a simple extender or self-managed distributed KVM switch. Each receiver can see up to 16 sources and rapidly switch between them.
ADDERLink INFINITY Matrix
With the addition of ADDERLink® INFINITY Management (AIM) system, you can turn multiple point-to-point extenders into a scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network.
EDID Management
Intelligent EDID management allows the true characteristics of the monitor to be passed back to the computer. This ensures perfect video display without additional configuration.
Plug and Play
ADDERLink INFINITY devices are delivered in a zero config state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.
Redundant Network Operation
The units support network teaming allowing for full network redundancy and increased resilience for mission-critical applications.
Digital Audio
The ALIF2000 series supports two channel digital audio input via USB and the digital video connector.
Technical details
Operating Systems and Compatibility
All known operating systems
Does not support HDCP or CEC control
Video resolutions
The system supports up to 1x 2560x1600 @60Hz or 2x 1920x1200 @60Hz

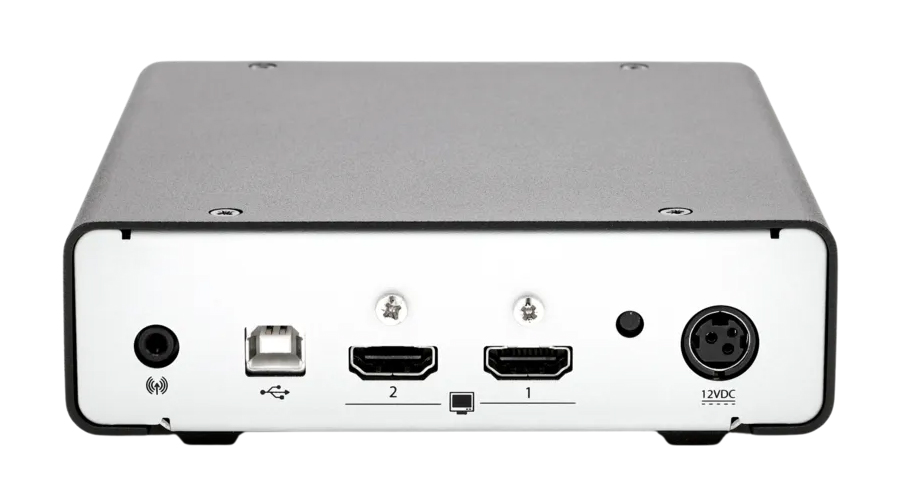

Computer connections
1 x USB B 2.0 (True Emulation, High Speed)
1 x USB A 2.0 (True Emulation) (Auxiliary connection)
2 x HDMI
Audio
Audio in Port: 1 x USB
Audio Type: Analog/Digital
Channels: 2
Audio Direction: Bi-directional
Audio Additional Information: Analog audio and audio via video connector is uni-directional
Size (bit): 16
Speed (kHz): 48

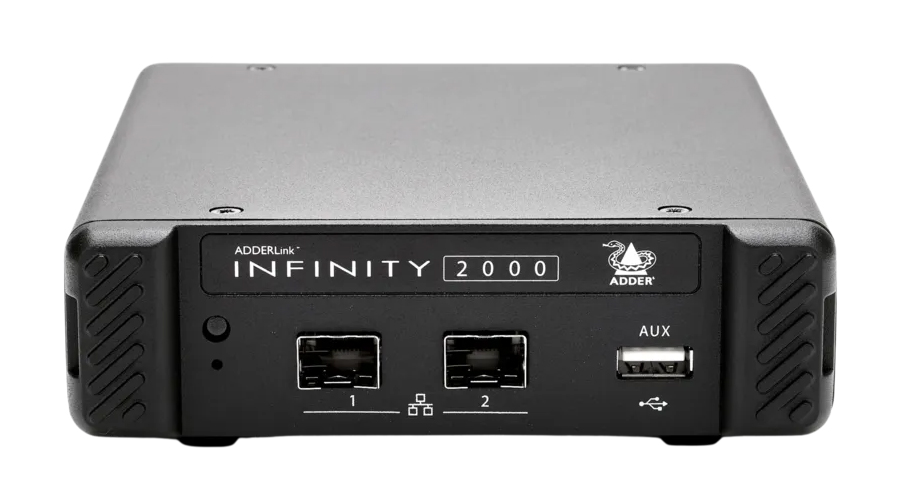

Link Ports
2 x SFP
Serial Comms
RS232 or other serial standards can be passed between the units to a maximum baud rate of 115,200 by using serial to USB converters
Network Support
Bandwidth: 1GbE
Physical design
1U compact case, robust metal construction
Dimensions: 136mm/5.4”(H) x 39mm/1.5(W) x 150mm/5.9”(D)
Weight: 0.8kg/1.7Ibs
Approvals
CE, cULus - E476334, FCC, ICES, UKCA
Standards
ANSI 63.4, EN/IEC 62368-1, EN55032 / CISPR 32, EN55035/CISPR 35, EN63000, FCC pt15B, ICES003
Other
Cal Prop 65, EU REACH, UK REACH
Power
Power type: 1 x 12V 3-pin Kycon
Maximum power (Watts): 18
Typical power (Watts): 7
Environmental
Operating temperature: 0 - 40°C/32 to 104°F
Storage temperature: 0 to 40°C/32 to 104°F
Storage and operating relative humidity: 10-90% (non-condensing)
Mean Time Between Failure
Mean Time Between Failure (MTBF) @ 55degC: 461,000 h
Temperature Regulation: Fanless
Operating Systems and Compatibility
All known operating systems
Does not support HDCP or CEC control
Video resolutions
The system supports up to 1x 2560x1600 @60Hz or 2x 1920x1200 @60Hz
Computer connections
1 x USB B 2.0 (True Emulation, High Speed)
1 x USB A 2.0 (True Emulation) (Auxiliary connection)
2 x HDMI
Audio
Audio in Port: 1 x USB
Audio Type: Analog/Digital
Channels: 2
Audio Direction: Bi-directional
Audio Additional Information: Analog audio and audio via video connector is uni-directional
Size (bit): 16
Speed (kHz): 48
Link Ports
2 x SFP
Serial Comms
RS232 or other serial standards can be passed between the units to a maximum baud rate of 115,200 by using serial to USB converters
Network Support
Bandwidth: 1GbE
Physical design
1U compact case, robust metal construction
Dimensions: 136mm/5.4”(H) x 39mm/1.5(W) x 150mm/5.9”(D)
Weight: 0.8kg/1.7Ibs
Approvals
CE, cULus - E476334, FCC, ICES, UKCA
Standards
ANSI 63.4, EN/IEC 62368-1, EN55032 / CISPR 32, EN55035/CISPR 35, EN63000, FCC pt15B, ICES003
Other
Cal Prop 65, EU REACH, UK REACH
Power
Power type: 1 x 12V 3-pin Kycon
Maximum power (Watts): 18
Typical power (Watts): 7
Environmental
Operating temperature: 0 - 40°C/32 to 104°F
Storage temperature: 0 to 40°C/32 to 104°F
Storage and operating relative humidity: 10-90% (non-condensing)
Mean Time Between Failure
Mean Time Between Failure (MTBF) @ 55degC: 461,000 h
Temperature Regulation: Fanless
Accessoires
ADDER - SFP-CATX-RJ45
The Adder SFP-CATX-RJ45 is an active Gigabit Ethernet CATx SFP transceiver for use with the AdderLink INFINITY series. The SFP-CATX-RJ45 extends up to, but is not limited to, a cable length of 100 meters. If you need to expand further, simply add a 1GbE network device to reach an additional 100 meters.
ADDERLink Infinity ALIF 1002 and all ALIF Dual variants offer a choice of link connections. Each supports copper-based Gigabit Ethernet (1000Base-T) as well as Fibre Channel over Ethernet (FCoE). The ALIF (1002) and ALIF Dual units offer a single system connector (CATx) on the right-hand side of the front panel as standard.
Optional fibre SFP modules offer a rate of 4.25 Gbps selectable with LC connectors suitable for up to 500 metres (multi-mode) or 10 km (single-mode), while the Gigabyte Ethernet CATx SFP module is suitable for up to, but not limited to, a cable length of 100 metres.
ALIF Dual units additionally enable parallel use of the dual network interface ports ("teaming operation") to produce Ethernet link speeds of up to 2 gigabits per second, with the added benefit of link redundancy that can maintain operation in the event of a failed link. Teaming provides immediate speed improvements in a one-to-one arrangement as well as in multicast installations.
Scope of delivery: ADDER - SFP-CATX-RJ45
