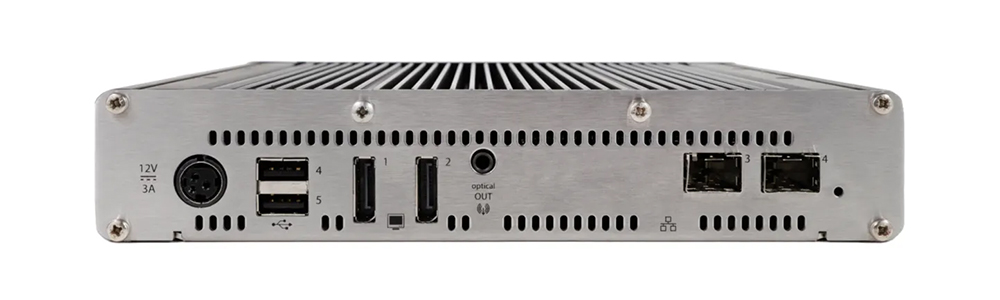

ADDERLink - INFINITY 4001 Receiver
A high performance dual-head IP KVM matrix solution with support for 5K video and multigigabit Ethernet connectivity - Receiver
Catalogusprijs:
€ 2.295,00*
Dealer prijs - Aanmelden
Nog 1 stuks beschikbaar, levertijd: Uit voorraad, onmiddellijk beschikbaar
Prijzen voor grotere hoeveelheden op aanvraag.
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Artikelnummer van de fabrikant:
ALIF4001R
Ons artikelnummer:
490540
Vragen? Wij adviseren u graag! → Contactformulier
Productinformatie "ADDERLink - INFINITY 4001 Receiver"
The ADDERLink INFINITY 4001 (ALIF4001) is a high performance IP KVM extender that forms part of the ALIF matrix solution. This enables the relocation of critical computing hardware into a secure and temperature controlled environment away from the user work station; while maintaining a pixel-perfect desktop experience.
Scope of delivery: ADDERLink - INFINITY 4001R
1× PSU-IEC-12VDC-5A : Power supply unit
1× IEC PSU cable of country code
Also available with RJ45 port: ADDERLink-INFINITY-ALIF4021R
Scope of delivery: ADDERLink - INFINITY 4001R
1× PSU-IEC-12VDC-5A : Power supply unit
1× IEC PSU cable of country code
Also available with RJ45 port: ADDERLink-INFINITY-ALIF4021R
| Graphic Port: | DisplayPort |
|---|---|
| Temperature Range: | 0°C to 50°C |
Features
5K Resolutions and High Frame Rate Supported
The ALIF4001 can deliver two 5K video resolutions and ultra-wide video resolutions (5120x1440@60Hz or 5120x2880@30Hz) or higher refresh rates of up to 240Hz (HD@240Hz) over a single IP connection.
Perfect Digital Video, Real-Time Control
Using a spatially-lossless encoding system, with 1:1 pixel mapping, the ALIF4001 provides pixel-perfect and color accurate video with no artifacts. The digital video received is the same as the digital video leaving the remote computer.
10-bit Per Color and HDR10
The ALIF4001 allows greater color depth of 10 bits per pixel (or 30 bits per color) and supports both SDR10 and HDR10.
Multigigabit Ethernet Support
The ALIF4001 supports 1 and 10GbE over fiber via the SFP slots along with Multirate (1/2.5/5/10) GbE. This enables premium video performance over standard CAT6 cable up to 100m.
Flexible and Scalable Extender or Switch
Each ALIF4000 series unit can be configured as a simple extender or self-managed distributed KVM switch. Each receiver can see up to 16 sources and rapidly switch between them.
ADDERLink INFINITY Matrix
With the addition of the ADDERLink® INFINITY management system (AIM), you can turn multiple point-to-point extenders into a truly scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network.
USB2.0 for Fast Switching
Allows fast switching speeds plus supports USB devices including graphics tablets, jog shuttles, joysticks and 3D explorers. The system can also disable mass storage devices, so there is no need to physically block USB ports.
USB 2.0 High Speed Support
Plug and play support for USB devices that use isochronous communication such as USB microphones, headsets, speakers, web cams or compound devices like some keyboards which include the above features.
Multi-channel Digital Audio Support
Up to eight channels of digital audio via DisplayPort™ are supported to provide a high-quality immersive sound experience. The systems also supports bi-directional stereo analog audio (line in/line out) and headsets and microphones.
Full Touchscreen Control
Dual touchscreen support including on-screen keyboard and floating launch button with configurable size which can be positioned anywhere on the screen.
EDID Management
Intelligent EDID management allows the true characteristics of the monitor to be passed back to the computer. This ensures perfect video display without additional configuration. The EDID can also be fixed by the ALIF transmitter.
Redundant Network Operation
The units support network teaming allowing for full network redundancy and increased resilience for mission-critical applications.
Plug and Play
ALIF devices are delivered in a zero config state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.
Onboard Diagnostics Tools
Diagnostics tool maximizes uptime and assists with technical support enquiries by allowing the customer to troubleshoot network issues directly from the unit.
5K Resolutions and High Frame Rate Supported
The ALIF4001 can deliver two 5K video resolutions and ultra-wide video resolutions (5120x1440@60Hz or 5120x2880@30Hz) or higher refresh rates of up to 240Hz (HD@240Hz) over a single IP connection.
Perfect Digital Video, Real-Time Control
Using a spatially-lossless encoding system, with 1:1 pixel mapping, the ALIF4001 provides pixel-perfect and color accurate video with no artifacts. The digital video received is the same as the digital video leaving the remote computer.
10-bit Per Color and HDR10
The ALIF4001 allows greater color depth of 10 bits per pixel (or 30 bits per color) and supports both SDR10 and HDR10.
Multigigabit Ethernet Support
The ALIF4001 supports 1 and 10GbE over fiber via the SFP slots along with Multirate (1/2.5/5/10) GbE. This enables premium video performance over standard CAT6 cable up to 100m.
Flexible and Scalable Extender or Switch
Each ALIF4000 series unit can be configured as a simple extender or self-managed distributed KVM switch. Each receiver can see up to 16 sources and rapidly switch between them.
ADDERLink INFINITY Matrix
With the addition of the ADDERLink® INFINITY management system (AIM), you can turn multiple point-to-point extenders into a truly scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network.
USB2.0 for Fast Switching
Allows fast switching speeds plus supports USB devices including graphics tablets, jog shuttles, joysticks and 3D explorers. The system can also disable mass storage devices, so there is no need to physically block USB ports.
USB 2.0 High Speed Support
Plug and play support for USB devices that use isochronous communication such as USB microphones, headsets, speakers, web cams or compound devices like some keyboards which include the above features.
Multi-channel Digital Audio Support
Up to eight channels of digital audio via DisplayPort™ are supported to provide a high-quality immersive sound experience. The systems also supports bi-directional stereo analog audio (line in/line out) and headsets and microphones.
Full Touchscreen Control
Dual touchscreen support including on-screen keyboard and floating launch button with configurable size which can be positioned anywhere on the screen.
EDID Management
Intelligent EDID management allows the true characteristics of the monitor to be passed back to the computer. This ensures perfect video display without additional configuration. The EDID can also be fixed by the ALIF transmitter.
Redundant Network Operation
The units support network teaming allowing for full network redundancy and increased resilience for mission-critical applications.
Plug and Play
ALIF devices are delivered in a zero config state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.
Onboard Diagnostics Tools
Diagnostics tool maximizes uptime and assists with technical support enquiries by allowing the customer to troubleshoot network issues directly from the unit.
Technical details
Video Information (For 1 Screen)
Maximum Resolution: 5120 x 2880
Colour Depth: 10 bpc
Additional Video Information
Additional Information: Supports resolutions up to 5120 x 2880 including UHD or DCI and refresh rates up to 240Hz.
Up to 10-bit per color SDR and HDR10.
Console Connections
USB A: 4× 2.0 True Emulation, High Speed
USB A: 1× 2.0 Transparent, High Speed
Full Size DisplayPort: 2×
Link Ports
SFP+: 2×
Audio Connections
Audio Type: Analog/Digital
Channels: 2
Audio In Ports: 1× 3.5mm jack
Audio Out Ports: 1× 3.5mm jack
Size (bit): 16
Speed (kHz): 48
Additional Information: Analog Line in/out 2 channel 16bit 48KHz 1V RMS in/1V RMS out. 2x DisplayPort Audio in either 2, 6 or 8 channels linear PCM
Network Support
Bandwidth: 2x 10GbE or 2x 1GbE (no10/100 support) via SFP or; 2x 10,5,2.5GbE and when using SFP-CATX-MR SFP
10/100 Support: No
Environmental
Operating Temperature: 0 - 50 °C / 32 - 122 °F
Storage Temperature: 0 - 50 °C / 32 - 122 °F
Operating Humidity (%): 10% - 90% (non-condensing)
Altitude: 2000m / 6561.68ft
Mean Time Between Failure (MTBF): 165,000 h
Power Source
12V 3-pin: 1×
Power Consumption
Typical Power (Watts): 20
Physical Design
Construction Material: Aluminium and steel construction
Width: 215mm / 8.46in
Height: 40mm / 1.57in
Depth: 210mm / 8.27in
Weight: 1.8kg / 3.97lb
Compatibility
OS Compatibility: Windows, macOS
Approvals and Standards
Approvals: CE, cULus - E476334, FCC, ICES, RCM, UKCA
Standards: ANSI 63.4, EN/IEC 62368-1, EN55032 /CISPR 32, EN55035/CISPR 35, EN61000-3-2, EN61000-3-3, EN63000, FCC pt15B, ICES003
Other: Cal Prop 65, China ROHS, EU REACH, UK REACH
Video Information (For 1 Screen)
Maximum Resolution: 5120 x 2880
Colour Depth: 10 bpc
Additional Video Information
Additional Information: Supports resolutions up to 5120 x 2880 including UHD or DCI and refresh rates up to 240Hz.
Up to 10-bit per color SDR and HDR10.
Console Connections
USB A: 4× 2.0 True Emulation, High Speed
USB A: 1× 2.0 Transparent, High Speed
Full Size DisplayPort: 2×
Link Ports
SFP+: 2×
Audio Connections
Audio Type: Analog/Digital
Channels: 2
Audio In Ports: 1× 3.5mm jack
Audio Out Ports: 1× 3.5mm jack
Size (bit): 16
Speed (kHz): 48
Additional Information: Analog Line in/out 2 channel 16bit 48KHz 1V RMS in/1V RMS out. 2x DisplayPort Audio in either 2, 6 or 8 channels linear PCM
Network Support
Bandwidth: 2x 10GbE or 2x 1GbE (no10/100 support) via SFP or; 2x 10,5,2.5GbE and when using SFP-CATX-MR SFP
10/100 Support: No
Environmental
Operating Temperature: 0 - 50 °C / 32 - 122 °F
Storage Temperature: 0 - 50 °C / 32 - 122 °F
Operating Humidity (%): 10% - 90% (non-condensing)
Altitude: 2000m / 6561.68ft
Mean Time Between Failure (MTBF): 165,000 h
Power Source
12V 3-pin: 1×
Power Consumption
Typical Power (Watts): 20
Physical Design
Construction Material: Aluminium and steel construction
Width: 215mm / 8.46in
Height: 40mm / 1.57in
Depth: 210mm / 8.27in
Weight: 1.8kg / 3.97lb
Compatibility
OS Compatibility: Windows, macOS
Approvals and Standards
Approvals: CE, cULus - E476334, FCC, ICES, RCM, UKCA
Standards: ANSI 63.4, EN/IEC 62368-1, EN55032 /CISPR 32, EN55035/CISPR 35, EN61000-3-2, EN61000-3-3, EN63000, FCC pt15B, ICES003
Other: Cal Prop 65, China ROHS, EU REACH, UK REACH
