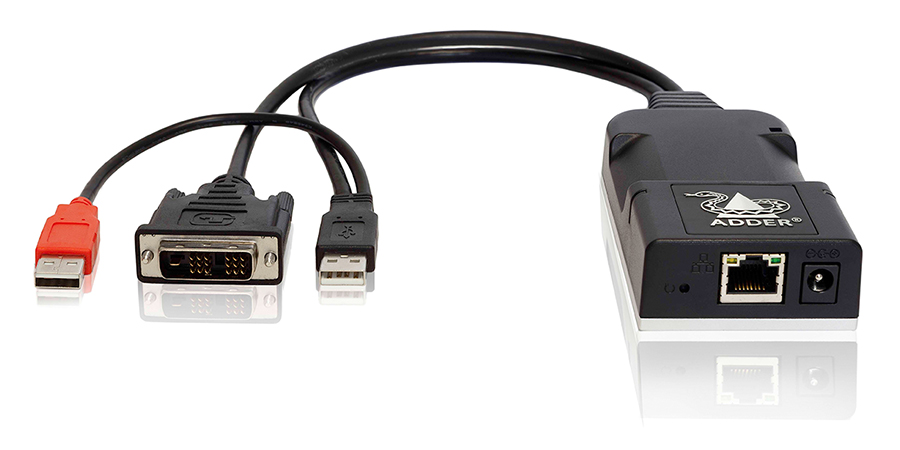

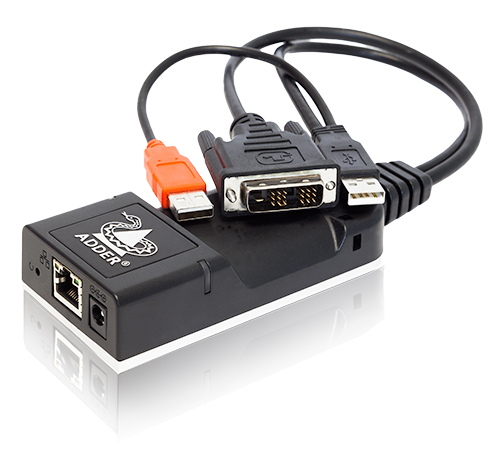

ADDERLink INFINITY - ALIF101T-DVI
High-performance ZeroU™ IP KVM dongle to extend or matrix video, audio and USB over a single cable
Catalogusprijs:
€ 821,00*
Dealer prijs - Aanmelden
Levertijd: Momenteel ongeveer 3-4 weken
Prijzen voor grotere hoeveelheden op aanvraag.
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Artikelnummer van de fabrikant:
ALIF101T-DVI
Ons artikelnummer:
490532
Vragen? Wij adviseren u graag! → Contactformulier
Productinformatie "ADDERLink INFINITY - ALIF101T-DVI"
ADDERLink INFINITY 101T (ALIF101T) is a high-performance ZeroU IP KVM extender (keyboard, video, mouse) with matrix capability that enables the use of standard IT infrastructure to keep computers out of the user's environment.
Scope of delivery: ALIF101T-DVI unit, rubber feet, Quick Start Guide
Optional accessories:
- ZeroU form factor
- Uses existing IP infrastructure
- USB power supply
- Energy efficient
- Easy to retrofit into existing infrastructure
- Plug and Play
Scope of delivery: ALIF101T-DVI unit, rubber feet, Quick Start Guide
Optional accessories:
- PSU-IEC-5VDC-2.5A: 12.5W power adapter
Features
ZeroU size
The ADDERLink INFINITY 101T (ALIF101T) requires ZeroU rack space in the server room, allowing ultimate flexibility and ease of installation.
IP-based
Use your existing network infrastructure to extend or structure your computing resources to your users.
USB power supply
The unit can be powered via USB. This means there is no need to provide an external power supply. External or redundant power supply options are also available.
Low power consumption
Requires less than 3 watts.
Video options
The system supports resolutions up to 2560x1600 at 60 Hz via a Displayport interface.
USB2.0
Allows connection of any USB HID (Human Interface Device) from mouse and keyboard to graphics tablets, jog shuttles, joysticks and 3D explorers. Supports high-speed devices such as USB hard drives.
Seamless integration with the ADDERLink INFINITY series
The ALIF101T can be seamlessly integrated into your existing ADDERLink INFINITY setup, replacing or working in conjunction with your existing ALIF endpoints.
Perfect digital video
The ALIF101T uses a spatially lossless coding system with 1: 1 pixel mapping. The digital video received matches the digital video leaving the remote computer to ensure the best possible image and colour accuracy.
Digital audio
The system can deliver USB stereo audio (bidirectional) or embedded video standard stereo audio (unidirectional).
EDID management
The system has intelligent EDID management, which can be used to either return the actual characteristics of the monitor to the computer or to set controlled resolutions.
Digital KVM matrix
The ADDERLink INFINITY Manager (AIM) allows you to turn multiple point-to-point extenders into a matrix system that allows each workstation to connect to any computer connected to the network. For more information, see the AIM page on the Adder website.
ZeroU size
The ADDERLink INFINITY 101T (ALIF101T) requires ZeroU rack space in the server room, allowing ultimate flexibility and ease of installation.
IP-based
Use your existing network infrastructure to extend or structure your computing resources to your users.
USB power supply
The unit can be powered via USB. This means there is no need to provide an external power supply. External or redundant power supply options are also available.
Low power consumption
Requires less than 3 watts.
Video options
The system supports resolutions up to 2560x1600 at 60 Hz via a Displayport interface.
USB2.0
Allows connection of any USB HID (Human Interface Device) from mouse and keyboard to graphics tablets, jog shuttles, joysticks and 3D explorers. Supports high-speed devices such as USB hard drives.
Seamless integration with the ADDERLink INFINITY series
The ALIF101T can be seamlessly integrated into your existing ADDERLink INFINITY setup, replacing or working in conjunction with your existing ALIF endpoints.
Perfect digital video
The ALIF101T uses a spatially lossless coding system with 1: 1 pixel mapping. The digital video received matches the digital video leaving the remote computer to ensure the best possible image and colour accuracy.
Digital audio
The system can deliver USB stereo audio (bidirectional) or embedded video standard stereo audio (unidirectional).
EDID management
The system has intelligent EDID management, which can be used to either return the actual characteristics of the monitor to the computer or to set controlled resolutions.
Digital KVM matrix
The ADDERLink INFINITY Manager (AIM) allows you to turn multiple point-to-point extenders into a matrix system that allows each workstation to connect to any computer connected to the network. For more information, see the AIM page on the Adder website.
Technical details
Video resolutions
The system supports resolutions up to 2560 x 1600 at 60 Hz
Operating / storage conditions
Power
Physical design
Connections
Specification
Cable length rules
Ethernet specification rules apply to a maximum run of 100 m
Approvals / Compliance
CE and FCC
Video resolutions
The system supports resolutions up to 2560 x 1600 at 60 Hz
Operating / storage conditions
- Operating temperature: 0 ° C to 50 ° C.
- Storage temperature: -10 to 60 ° C / 140 ° F.
Power
- USB power supply: 2x USB 2.0 (2x 500 mA at 5 V) 5 W.
- External power supply: 5 VDC, 1A (LPS).
- Typical power consumption: 3W
- BTU: 10.2 BTU / h
Physical design
- Dimensions: (L) 110 mm / 4.3 "x (W) 55 mm / 2.17" x (D) 25 mm / 1 "with 30 cm / 11.8" cable length
- Weight: 0.2 kg
- Materials: ABS and aluminium construction
Connections
- Computer: 1x DVI, 2x USB type A.
- Ethernet: 1x 8p8c (RJ45)
- Power: 2.5 mm jack
Specification
- USB: USB 2.0 Low, Full and Fast
- USB functions: Keyboard, mouse, touch and hard drives
- USB device as: 7 or 13 port hub
- Maximum video resolution: Up to 2560 x 1600 at 60 Hz
- Audio: 2-channel 16bit 48KHz bidirectional USB audio
- DisplayPort audio: 2-channel linear PCM
- Ethernet: 1 GbE (no 10/100 support)
- Requires source to be DisplayPort Dual-Mode (DP ++) compatible
Cable length rules
Ethernet specification rules apply to a maximum run of 100 m
Approvals / Compliance
CE and FCC
