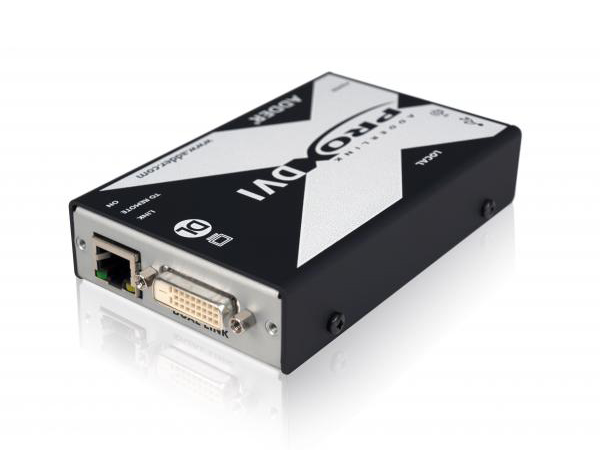

ADDERLink - X-DVIPRO-DL
USB & Dual Link DVI KVMA CATx Extender Pair
Catalogusprijs:
€ 1.030,00*
Dealer prijs - Aanmelden
Levertijd: Momenteel ongeveer 3-4 weken
Prijzen voor grotere hoeveelheden op aanvraag.
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Artikelnummer van de fabrikant:
X-DVIPRO-DL
Ons artikelnummer:
490359
Vragen? Wij adviseren u graag! → Contactformulier
Productinformatie "ADDERLink - X-DVIPRO-DL"
As part of the ADDERLink X-DVI PRO range, the high performance digital KVM (keyboard, video and mouse) and USB extender X-DVI PRO-DL allows you to locate your critical computer hardware in a secure and temperature controlled environment. Uncompressed digital video and audio is distributed in real time and without latency over a dual link DVI video stream, allowing users to maintain a PC experience. The USB 2.0 interface ensures compatibility with a wide range of USB devices.
Optional accessories:
- Set consisting of transmitter and receiver
- Dual Link resolutions: Deliver uncompressed digital video with audio
- USB 2.0 low and full speed connection : To interface with a range of devices
- Accurately distributes content on the local monitor : up to 50 m over a single CATx cable
- Energy-efficient design : No need for external power supplies
- X-DVI PRO-DL : Enables a single screen at 2560 x 1600 at 60 Hz
Optional accessories:
- X-RMK-CHASSIS: Rack-mount housing
- X-RMK-FASCIA: Rack-mounting kit for X-DVIPRO
| Graphic Port: | DVI, HDMI |
|---|---|
| Keyboard & Mouse: | USB |
| Option: | Audio, Point-to-Point |
| Screen: | Single |
Features
Dual link resolutions for pixel-perfect digital video with real-time control.
Use of uncompressed video extension; no visible artefacts or latency are introduced, so you can be confident of quality and control.
Distribution up to 50 m over a single CATx cable
Video, USB 2.0 (low and full speed) and audio are transmitted over a single cable, providing up to 50 m extension with resolutions up to 2560x1600 at 60 Hz (distance depends on video resolution, CATx, cable type and number of connection intervals)
Connect any USB interface device
The ADDERLink X-DVIPRO extenders use a unique method of USB communication and offer the highest level of USB compatibility. All USB 1.1 and 2.0 low / full speed devices are supported.
HDMI video and audio extension functions
Digital audio for 8 HDMI audio channels supported simultaneously with analogue audio
Dual link resolutions for pixel-perfect digital video with real-time control.
Use of uncompressed video extension; no visible artefacts or latency are introduced, so you can be confident of quality and control.
Distribution up to 50 m over a single CATx cable
Video, USB 2.0 (low and full speed) and audio are transmitted over a single cable, providing up to 50 m extension with resolutions up to 2560x1600 at 60 Hz (distance depends on video resolution, CATx, cable type and number of connection intervals)
Connect any USB interface device
The ADDERLink X-DVIPRO extenders use a unique method of USB communication and offer the highest level of USB compatibility. All USB 1.1 and 2.0 low / full speed devices are supported.
HDMI video and audio extension functions
Digital audio for 8 HDMI audio channels supported simultaneously with analogue audio
Technical details
Audio
The system provides analogue stereo audio (line out). 8 HDMI audio channels are provided with sample sizes of 16, 20 or 24 bits at 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz or 192 kHz (simultaneously with the jack).
Approvals / Compliance
Recommended cables are CAT7 shielded, foil twisted pairs:
For each break / patch connection, reduce the distance by 5 m. Patch cables should preferably be of type CAT7a and less than 2 m long. Patch cables over 2 m must be CAT7a. The maximum extension distance for USB is 50 m, including connections to and from the X-DVI PRO DL, regardless of cable type. If a USB hub is connected to the RX unit, this is considered as 5 m cable length. This must be taken into account when planning your system.
CAT5e is not recommended for use with this system.
Operating temperature
0 to 40 ° C / 32 to 104 ° F.

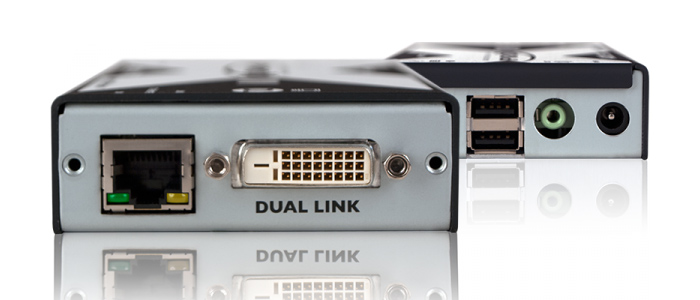

Connections - Transmitter (Tx)
DVI-D, Audio 3.5 mm, USB type B.
Connections - receiver (Rx)
DVI-D, audio 3.5 mm output, USB type A x 4.
Physical design
Compatible with all known operating systems
Audio
The system provides analogue stereo audio (line out). 8 HDMI audio channels are provided with sample sizes of 16, 20 or 24 bits at 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz or 192 kHz (simultaneously with the jack).
Approvals / Compliance
- CE
- FCC
- DVI-D Interface - Digital Only The system supports resolutions up to 1920 x 1200 at 60 Hz
- Hardware Compatibility: All computers with DVI-D, USB and audio - as required.
Recommended cables are CAT7 shielded, foil twisted pairs:
- Daetwyler 7702 Flexible Patch Cable.
- Daetwyler 7120 Bulk Cable
For each break / patch connection, reduce the distance by 5 m. Patch cables should preferably be of type CAT7a and less than 2 m long. Patch cables over 2 m must be CAT7a. The maximum extension distance for USB is 50 m, including connections to and from the X-DVI PRO DL, regardless of cable type. If a USB hub is connected to the RX unit, this is considered as 5 m cable length. This must be taken into account when planning your system.
CAT5e is not recommended for use with this system.
Operating temperature
0 to 40 ° C / 32 to 104 ° F.
Connections - Transmitter (Tx)
DVI-D, Audio 3.5 mm, USB type B.
Connections - receiver (Rx)
DVI-D, audio 3.5 mm output, USB type A x 4.
Physical design
- Compact housing, robust metal construction
- 120 mm (W) x 75 mm / 3 "(d) x 26 mm / 1" (h)
- Weight: 320 g
- Rx: 2.5 mm DC jack (power supply included), 100-240 VAC, 50/60 Hz, 0.4 A, input to power supply, 5 VDC, 12.5 W output from power supply.
- TX: Powered by a single USB connection. Optional 2.5 mm DC socket
Compatible with all known operating systems
