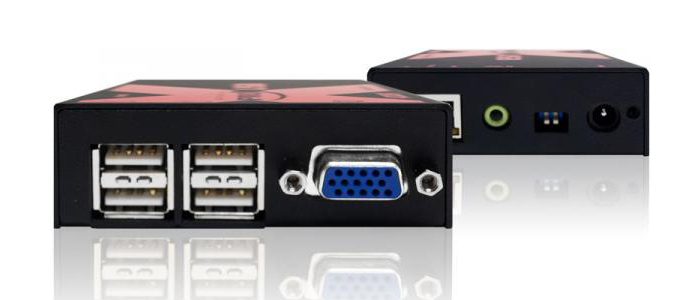

ADDERLink - X-USBPRO
USB & VGA KVMA CATx Extender Pair
Catalogusprijs:
€ 821,00*
Dealer prijs - Aanmelden
Nog 5 stuks beschikbaar, levertijd: Uit voorraad, onmiddellijk beschikbaar
Prijzen voor grotere hoeveelheden op aanvraag.
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Artikelnummer van de fabrikant:
X-USBPRO
Ons artikelnummer:
490292
Vragen? Wij adviseren u graag! → Contactformulier
Productinformatie "ADDERLink - X-USBPRO"

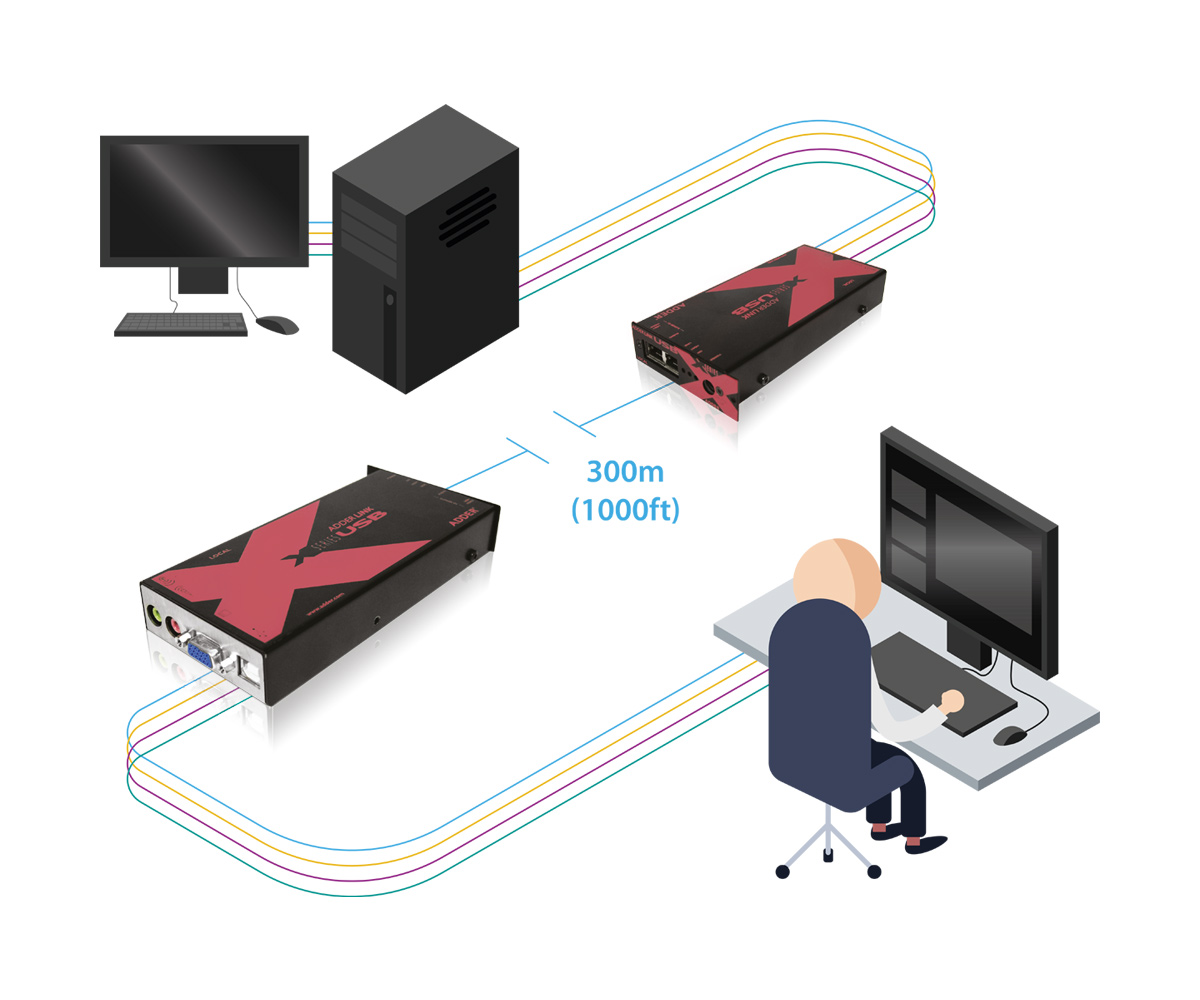

Adder's next-generation USB, video and audio extender distributes uncompressed data to deliver crisp, bright, high-definition video and high-quality audio over a single CATx cable to single-user consoles up to 300m in length.
Scope of delivery: X-USBPRO transmitter, X-USBPRO receiver, power supply, rubber feet.
Optional accessories:
- Set consisting of transmitter and receiver
Scope of delivery: X-USBPRO transmitter, X-USBPRO receiver, power supply, rubber feet.
Optional accessories:
- X-RMK-CHASSIS: Rack-mount enclosure
- X-RMK-FASCIA: Rack-mounting kit for X-USBPRO
| Graphic Port: | VGA |
|---|---|
| Port Number: | 4 Ports |
Features
Digital like video
VGA resolutions of 1920 x 1200 at 60 Hz are achievable at 300 m. This can be achieved by incorporating a variable noise filter that overcomes problems caused by increased gain as the length of the cable increases beyond 200m.
Video compensation
A multi-pole compensation technique enables excellent video quality at maximum distance over a single cable. For the first time, cable type and length can be adjusted with further colour offset compensation and gain adjustment to ensure crystal clear images from the receiver's keyboard.
Local feed-through port
A local feed-through port is provided for audio and video so that a local console can be used.
USB transmitter
The transmitter is powered via the USB port to reduce the need for external power supplies. There is the option of an external power supply if there is insufficient power to the USB port.
Configuration for two users
Two ADDERLinkTM X-USB PRO units can be connected to a single computer, allowing two users to access the system. If you use two sets of X-USB PRO modules to allow two users to access a single computer, arbitration between the users is handled by the computer's USB subsystem. This means that both users can control the computer at exactly the same time, and the resulting keyboard and mouse influences are an amalgamation of the two inputs.
Emulated two-sided DDC EDID
This extender supports full two-sided DDC EDID. Some high performance graphics cards require the two-sided data or they do not provide optimal performance.
USB support
The X-USB PRO extends USB 2.0 (low and full speed) so that all USB compatible accessories (including isochronous devices) can be extended. The receiver unit has a built-in 4-port USB hub that can remotely locate a complete desktop, including keyboard, monitor, mouse, hard disk drive, ash storage, webcam and all other devices normally connected to the computer USB port.
Audio
Audio transmission provides CD-quality stereo audio for speakers.
Rack options
Both transmitter and receiver units can be used stand-alone or up to 16 units can be built into a 2U enclosure.
Digital like video
VGA resolutions of 1920 x 1200 at 60 Hz are achievable at 300 m. This can be achieved by incorporating a variable noise filter that overcomes problems caused by increased gain as the length of the cable increases beyond 200m.
Video compensation
A multi-pole compensation technique enables excellent video quality at maximum distance over a single cable. For the first time, cable type and length can be adjusted with further colour offset compensation and gain adjustment to ensure crystal clear images from the receiver's keyboard.
Local feed-through port
A local feed-through port is provided for audio and video so that a local console can be used.
USB transmitter
The transmitter is powered via the USB port to reduce the need for external power supplies. There is the option of an external power supply if there is insufficient power to the USB port.
Configuration for two users
Two ADDERLinkTM X-USB PRO units can be connected to a single computer, allowing two users to access the system. If you use two sets of X-USB PRO modules to allow two users to access a single computer, arbitration between the users is handled by the computer's USB subsystem. This means that both users can control the computer at exactly the same time, and the resulting keyboard and mouse influences are an amalgamation of the two inputs.
Emulated two-sided DDC EDID
This extender supports full two-sided DDC EDID. Some high performance graphics cards require the two-sided data or they do not provide optimal performance.
USB support
The X-USB PRO extends USB 2.0 (low and full speed) so that all USB compatible accessories (including isochronous devices) can be extended. The receiver unit has a built-in 4-port USB hub that can remotely locate a complete desktop, including keyboard, monitor, mouse, hard disk drive, ash storage, webcam and all other devices normally connected to the computer USB port.
Audio
Audio transmission provides CD-quality stereo audio for speakers.
Rack options
Both transmitter and receiver units can be used stand-alone or up to 16 units can be built into a 2U enclosure.
Technical details
Video resolutions
All resolutions up to 1920 x 1200 at 60 Hz, including 1600 x 1200, 1080p, 1680 x 1050.
Audio
Supports all USB 1.1 devices (full speed and low speed) and USB 2.0 devices running in USB 1.1 mode at low or full speed.
Skew compensation
62 ns de-skew with 2 ns resolution (1/4 pixel at 1600x1200).
Extension distance
Works with all currently known software and operating systems, including Windows, DOS, Linux, Unix, BSD, Sun OS, Mac OS and NetWare versions
Power supply
CE and FCC Class A.
Video resolutions
All resolutions up to 1920 x 1200 at 60 Hz, including 1600 x 1200, 1080p, 1680 x 1050.
Audio
- 2-channel 16-bit audio at 44.1 kHz
- THD + N typically -80 dB at 1 kHz
- SNR typically 85 dB at 1 kHz
Supports all USB 1.1 devices (full speed and low speed) and USB 2.0 devices running in USB 1.1 mode at low or full speed.
Skew compensation
62 ns de-skew with 2 ns resolution (1/4 pixel at 1600x1200).
Extension distance
- 200 m with CAT5 cable
- 250 m with CAT5e cable
- 3000 m with CAT6 main cable
- 300 m with CAT7 cable
- 200 m with CAT7a patch cable
- 4x USB type A connectors, 1x 15-pin high-density D-type jack (blue)
- 1x 3.5 mm audio jack (light green), 1x RJ45
- 1x 2.5 mm DC socket for power supply unit
- 1x USB type B connector, 2x 15-pin high-density D-type jack (blue)
- 2x 3.5 mm audio jack (light green), 1x RJ45
- 1x 2.5 mm DC socket for optional power supply (only required for video applications)
- Receiver: 162 mm x 26 mm x 75 mm, 430 g
- Transmitter: 122 mm x 26 mm x 75 mm, 350 g
- Fits in one slot width in X-series rack enclosure (16 units per 2U rack space)
Works with all currently known software and operating systems, including Windows, DOS, Linux, Unix, BSD, Sun OS, Mac OS and NetWare versions
Power supply
- 100 - 240 V AC, 50/60 Hz Input
- 5V, 12W output
CE and FCC Class A.
