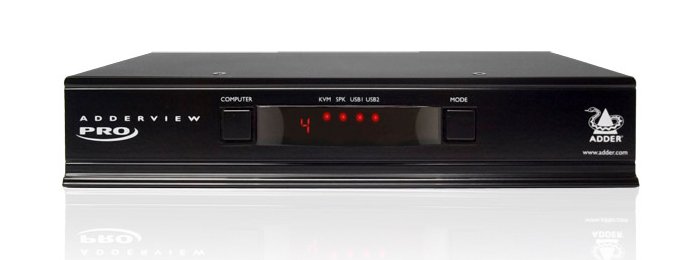

ADDERView - AV4PRO-DP
USB 2.0, Display Port and Audio KVM Switch - 4 Ports
Catalogusprijs:
€ 602,00*
Dealer prijs - Aanmelden
Nog 3 stuks beschikbaar, levertijd: Uit voorraad, onmiddellijk beschikbaar
Prijzen voor grotere hoeveelheden op aanvraag.
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Artikelnummer van de fabrikant:
AV4PRO-DP
Ons artikelnummer:
490323
Vragen? Wij adviseren u graag! → Contactformulier
Productinformatie "ADDERView - AV4PRO-DP"

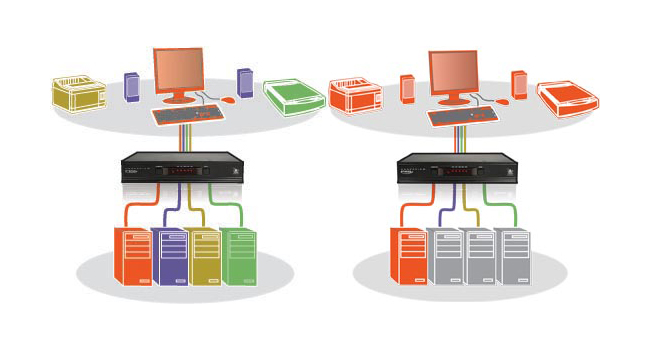

The AV4PRO DisplayPort is part of the ADDERView PRO range and allows control of four computers with DisplayPort technology from a single KVM console. This four-port switch is also available in DVI or VGA variants.
Scope of delivery: ADDERView AV4PRO-DP, power supply, rubber feet, CD-ROM
Optional accessories:
- Access multiple applications
Allow one display, keyboard and mouse to switch control between up to eight computers - Smooth and reliable USB switching
Adder's USB True Emulation ensures fast and reliable switching
Scope of delivery: ADDERView AV4PRO-DP, power supply, rubber feet, CD-ROM
Optional accessories:
- RC4-8P8C: 4-button switch incl. 3m cable
- RMK3: Rack mounting kit
| Graphic Port: | DisplayPort |
|---|---|
| KVM Ports: | 4 Ports |
| Keyboard & Mouse: | USB |
| Option: | Audio |
| Power Supply: | Single AC |
| Remote Users: | 1 User |
Features
Enhanced DDC EDID Profile
Ensures that the graphics card is always optimised for use with your display.
High resolution video
Supports a resolution of 2560 x 1600 at a refresh rate of 60 Hz and 10 bits per colour, a resolution of 1920 x 1200 at a refresh rate of 120 Hz as well as Full HD monitors with a resolution of 1920 x 1080 and a refresh rate of 60 Hz at 12 bits per colour without latency via standard cables.
USB True Emulation
USB 2.0 enables connection to any USB user interface device from mice and keyboards to graphics tablets, jog shuttles, joysticks and 3D explorers.
Independent USB device selection
Switching options allow the operator to use a keyboard and mouse on one computer while USB peripherals are connected to others.
Channel selection options
Switch with selectable keyboard hotkeys, three-button mice or front panel controls, or add an RC4 remote control.
Broad USB 2.0 HID support
A range of USB devices can be connected, including printers, scanners and non-standard user interface devices.
'Options' port for control, synchronisation and upgrade.
Port allows remote switching with simple ASCII codes; units to be switched synchronously to create a multi-video head switching system; and firmware upgrades via the same port.
Enhanced DDC EDID Profile
Ensures that the graphics card is always optimised for use with your display.
High resolution video
Supports a resolution of 2560 x 1600 at a refresh rate of 60 Hz and 10 bits per colour, a resolution of 1920 x 1200 at a refresh rate of 120 Hz as well as Full HD monitors with a resolution of 1920 x 1080 and a refresh rate of 60 Hz at 12 bits per colour without latency via standard cables.
USB True Emulation
USB 2.0 enables connection to any USB user interface device from mice and keyboards to graphics tablets, jog shuttles, joysticks and 3D explorers.
Independent USB device selection
Switching options allow the operator to use a keyboard and mouse on one computer while USB peripherals are connected to others.
Channel selection options
Switch with selectable keyboard hotkeys, three-button mice or front panel controls, or add an RC4 remote control.
Broad USB 2.0 HID support
A range of USB devices can be connected, including printers, scanners and non-standard user interface devices.
'Options' port for control, synchronisation and upgrade.
Port allows remote switching with simple ASCII codes; units to be switched synchronously to create a multi-video head switching system; and firmware upgrades via the same port.
Technical details
Video resolutions
Supports a resolution of 2560 x 1600 at a refresh rate of 60 Hz and 10 bits per colour, a resolution of 1920 x 1200 at a refresh rate of 120 Hz as well as Full HD monitors with a resolution of 1920 x 1080 and a refresh rate of 60 Hz at 12 bits per colour without latency via standard cables.
Audio
3.5 mm stereo jack
Approvals / Compliance
Standards
USB 2.0 Type B
Cable requirements
All standard cables
Operating temperature
0 to 40 ° C / 32 to 104 ° F.

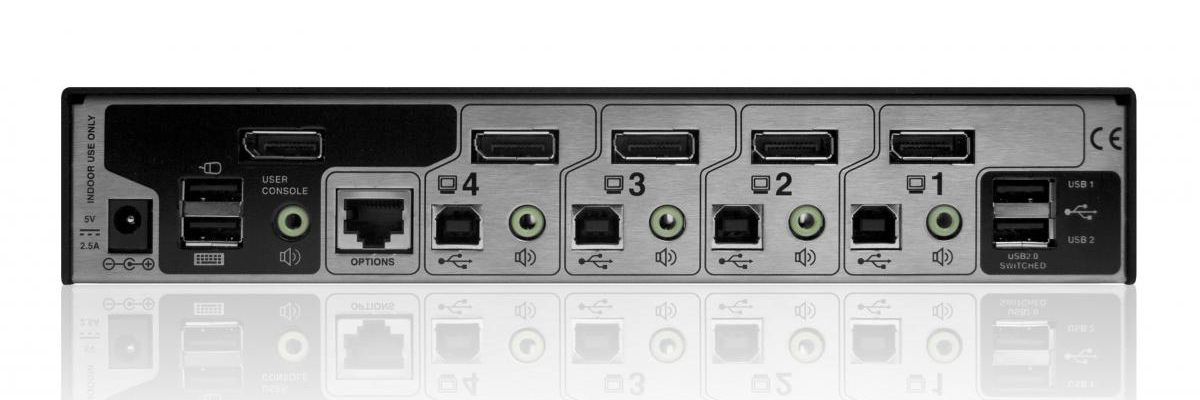

Connections - User
Video: Display port, 2 x USB type A, Switched USB: 2 x USB 2.0 type A, Audio: 3.5 mm stereo jack USB 2.0 type B, DisplayPort, 3.5 mm stereo jack
Connections - Computer
Options (flash upgrade, synchronisation with other power switches triggered by AV4PRO-DP and RS232): Modular 10P10C
Physical design
1U high metal enclosure 233 mm (W), 115 mm (D), 44 mm (H)
Power
2.5 mm DC socket (power supply unit included), 100-240 VAC 50 / 60Hz input to power supply unit, 5 VDC 2A output from power supply unit
Software compatibility
Works with all known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare, etc.
Video resolutions
Supports a resolution of 2560 x 1600 at a refresh rate of 60 Hz and 10 bits per colour, a resolution of 1920 x 1200 at a refresh rate of 120 Hz as well as Full HD monitors with a resolution of 1920 x 1080 and a refresh rate of 60 Hz at 12 bits per colour without latency via standard cables.
Audio
3.5 mm stereo jack
Approvals / Compliance
- CE
- FCC
Standards
USB 2.0 Type B
Cable requirements
All standard cables
Operating temperature
0 to 40 ° C / 32 to 104 ° F.
Connections - User
Video: Display port, 2 x USB type A, Switched USB: 2 x USB 2.0 type A, Audio: 3.5 mm stereo jack USB 2.0 type B, DisplayPort, 3.5 mm stereo jack
Connections - Computer
Options (flash upgrade, synchronisation with other power switches triggered by AV4PRO-DP and RS232): Modular 10P10C
Physical design
1U high metal enclosure 233 mm (W), 115 mm (D), 44 mm (H)
Power
2.5 mm DC socket (power supply unit included), 100-240 VAC 50 / 60Hz input to power supply unit, 5 VDC 2A output from power supply unit
Software compatibility
Works with all known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare, etc.
