ADDERView - AV4PRO-DVI-DUAL
Multiscreen: USB 2.0, Dual Head DVI KVMA Switch - 4 Ports
Catalogusprijs:
€ 821,00*
Dealer prijs - Aanmelden
Levertijd: Momenteel ongeveer 3-4 weken
Prijzen voor grotere hoeveelheden op aanvraag.
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Artikelnummer van de fabrikant:
AV4PRO-DVI-DUAL
Ons artikelnummer:
490260
Vragen? Wij adviseren u graag! → Contactformulier
Productinformatie "ADDERView - AV4PRO-DVI-DUAL"
Part of the ADDERView PRO range, the AV4PRO DVI is a KVMA switch that allows four multi-head computers to be controlled from a single KVM console. This four-port switch is available in eight-port (AV8PRO), multiscreen, VGA or DisplayPort variants.
Scope of delivery: ADDERView AV4PRO-DVI-DUAL, power supply, rubber feet
Optional accessories:
- Access multiple applications
Allow one display, keyboard and mouse to switch control between up to eight computers - Smooth and reliable USB switching
Adder's USB True Emulation ensures fast and reliable switching
Scope of delivery: ADDERView AV4PRO-DVI-DUAL, power supply, rubber feet
Optional accessories:
- RMK3: Two 19" rack-mounting brackets and screws.
- RC4-8P8C: RC4 remote control incl. standard 3m patch cable
| Graphic Port: | DVI |
|---|---|
| KVM Ports: | 4 Ports |
| Power Supply: | Single AC |
| Remote Users: | 1 User |
Features
Enhanced DDC EDID Profile
Ensures that the graphics card is always optimised for use with your display.
High resolution video
The DualLink DVI features allow users to work at very high resolutions including 2K (2048 x 1080) and WQXGA (2560 x 1600) per head, with a choice of digital or analogue.
USB True Emulation
USB 2.0 enables connection to any USB user interface device from mice and keyboards to graphics tablets, jog shuttles, joysticks and 3D explorers.
Independent USB device selection
Switching options allow the operator to use a keyboard and mouse on one computer while USB peripherals are connected to others.
Channel selection options
Switch with selectable keyboard hotkeys, three-button mice or front panel controls, or add an RC4 remote control.
Broad USB 2.0 HID support
A range of USB devices can be connected, including printers, scanners and non-standard user interface devices.
'Options' port for control, synchronisation and upgrade.
Port allows remote switching with simple ASCII codes; units to be switched synchronously to create a multi-video head switching system; and firmware upgrades via the same port.
Enhanced DDC EDID Profile
Ensures that the graphics card is always optimised for use with your display.
High resolution video
The DualLink DVI features allow users to work at very high resolutions including 2K (2048 x 1080) and WQXGA (2560 x 1600) per head, with a choice of digital or analogue.
USB True Emulation
USB 2.0 enables connection to any USB user interface device from mice and keyboards to graphics tablets, jog shuttles, joysticks and 3D explorers.
Independent USB device selection
Switching options allow the operator to use a keyboard and mouse on one computer while USB peripherals are connected to others.
Channel selection options
Switch with selectable keyboard hotkeys, three-button mice or front panel controls, or add an RC4 remote control.
Broad USB 2.0 HID support
A range of USB devices can be connected, including printers, scanners and non-standard user interface devices.
'Options' port for control, synchronisation and upgrade.
Port allows remote switching with simple ASCII codes; units to be switched synchronously to create a multi-video head switching system; and firmware upgrades via the same port.
Technical details
Video resolutions
Dual-link DVI capabilities allow users to work at very high resolutions, including 2K (2048 x 1080) for film post-production and WQXGA (2560 x 1600).
Audio
3.5 mm stereo jack
Approvals / Compliance
Standards
USB 2.0 Type B.
Cable requirements
All standard cables
Operating temperature
0 to 40 ° C / 32 to 104 ° F.

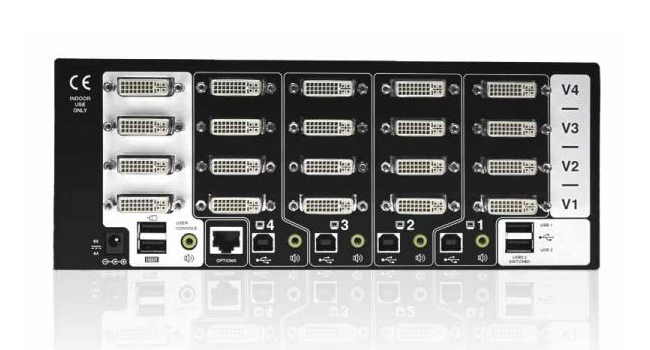

Connections - User
Connections - Computer
Options (flash upgrade, synchronisation with other power switches triggered by AV4PRO-DP and RS232): Modular 10P10C
Physical design
Power
2.5 mm DC socket (power supply unit included), 100-240 VAC 50 / 60Hz input to power supply unit, 5 VDC 2A output from power supply unit
Software compatibility
Works with all known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare, etc.
Video resolutions
Dual-link DVI capabilities allow users to work at very high resolutions, including 2K (2048 x 1080) for film post-production and WQXGA (2560 x 1600).
Audio
3.5 mm stereo jack
Approvals / Compliance
- CE
- FCC
Standards
USB 2.0 Type B.
Cable requirements
All standard cables
Operating temperature
0 to 40 ° C / 32 to 104 ° F.
Connections - User
- Keyboard/Mouse: 2 x USB Type A.
- Switched USB: 2 x USB 2.0 type A. Supports USB 2.0 devices in low, full and high speed mode.
- USB True Emulation: Emulates keyboard and mouse on each port. Supports HID USB 2.0 low speed devices.
- Other ports: Options (flash upgrade, synchronisation with other power switches triggered by AV4PRO-DVI-MS and RS232): Modular 10P10C USB 2.0 type B, high resolution VGA (up to 4 per port), 3.5 mm stereo jack
Connections - Computer
Options (flash upgrade, synchronisation with other power switches triggered by AV4PRO-DP and RS232): Modular 10P10C
Physical design
- Single: 1U high metal enclosure 260 mm (W), 150 mm (D), 40 mm (H)
- Dual, Triple and Quad: 2.5U high metal enclosure 260 mm (W), 150 mm (D), 100 mm (H)
Power
2.5 mm DC socket (power supply unit included), 100-240 VAC 50 / 60Hz input to power supply unit, 5 VDC 2A output from power supply unit
Software compatibility
Works with all known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare, etc.
