ADDERView - CCS-MV4224
Command and control multi-viewer switch for sharing 4K video, keyboard and mouse, plus audio between four computers.
Catalogusprijs:
€ 4.688,00*
Dealer prijs - Aanmelden
Levertijd: Momenteel ongeveer 3-4 weken
Prijzen voor grotere hoeveelheden op aanvraag.
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Artikelnummer van de fabrikant:
CCS-MV4224
Ons artikelnummer:
490545
Vragen? Wij adviseren u graag! → Contactformulier
Productinformatie "ADDERView - CCS-MV4224"

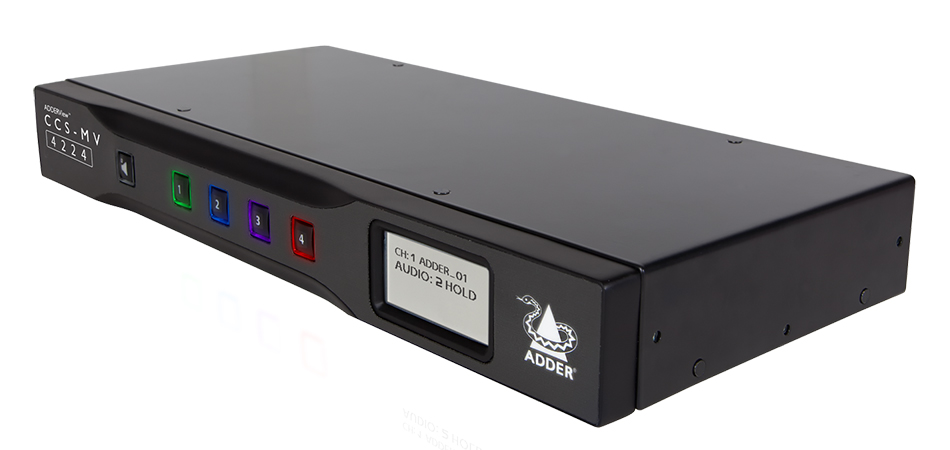

The ADDERView® CCS-MV, a desktop multi-viewer switch, provides simultaneous, real-time 4K KVMA (Keyboard, Video, Mouse and Audio) access of up to four computers from a single workstation. Users can instantly take control of the target computer by simply moving the mouse between windows, providing the experience of a single desktop.
- Directly connect a single workstation to four video, audio and USB sources
- Access any number of sources on a network when combined with an ADDERLink® INFINITY IP KVM Matrix
- Seamless cursor interaction with sources as if using a single desktop
- Multiple, color-coded screen configurations for fast channel identification, real-time data visualization and improved decision making
- Enhanced, decluttered workspace ergonomics and improved situational awareness
| KVM Ports: | 4 Ports |
|---|---|
| Keyboard & Mouse: | Audio |
| Local Users: | 1 User |
| Power Supply: | 12V DC |
Features
Video performance
Up to UHD 4K video output resolution is generated, thus providing a crystal clear display, even with a quad window layout.
Automatic switching
Natural automatic switching of KVM and audio control between ports without the need to press any buttons. Simply move the mouse between windows.
Flexible screen layout
Use preset window layouts, or move and resize windows to create custom layouts. Dual output ports allow for extended or duplicated displays.
Channel identification
Reduce the chances of operator error by displaying a meaningful name for each channel. The port LED and window border colors may also be configured.
USB performance
Emulated USB2.0 ports for fast switching of HID (Human Interface Devices), such as keyboard and mouse. Hi-speed USB3.0 switched port for mass storage and isochronous devices, including flash drives, headsets and web cams.
Flexible computer connections
Connect to a combination of single and dual-head computers.
Analog audio
Bi-directional analog audio. An audio ‘Hold’ facility assigns the audio connection to a specific computer whilst the KVM is switched to another computer. Useful when a user needs to talk to one channel, whilst working on another.
Digital audio mixer
Option to combine audio signal from multiple HDMI® channels. Adjust the volume level for each channel.
Copy & Paste
Copy text between Windows 10 computers using standard keyboard, Ctrl+C and Ctrl+V commands.
Remote control
Select layout presets and input channels remotely for control room applications where the displays are used to aid situation awareness.
Matrix integration
The ADDERView® CCS-MV 4224 may be connected to the ADDERLink® INFINITY matrix system. This allows the user to control any 4 computers connected to the matrix network.
Video performance
Up to UHD 4K video output resolution is generated, thus providing a crystal clear display, even with a quad window layout.
Automatic switching
Natural automatic switching of KVM and audio control between ports without the need to press any buttons. Simply move the mouse between windows.
Flexible screen layout
Use preset window layouts, or move and resize windows to create custom layouts. Dual output ports allow for extended or duplicated displays.
Channel identification
Reduce the chances of operator error by displaying a meaningful name for each channel. The port LED and window border colors may also be configured.
USB performance
Emulated USB2.0 ports for fast switching of HID (Human Interface Devices), such as keyboard and mouse. Hi-speed USB3.0 switched port for mass storage and isochronous devices, including flash drives, headsets and web cams.
Flexible computer connections
Connect to a combination of single and dual-head computers.
Analog audio
Bi-directional analog audio. An audio ‘Hold’ facility assigns the audio connection to a specific computer whilst the KVM is switched to another computer. Useful when a user needs to talk to one channel, whilst working on another.
Digital audio mixer
Option to combine audio signal from multiple HDMI® channels. Adjust the volume level for each channel.
Copy & Paste
Copy text between Windows 10 computers using standard keyboard, Ctrl+C and Ctrl+V commands.
Remote control
Select layout presets and input channels remotely for control room applications where the displays are used to aid situation awareness.
Matrix integration
The ADDERView® CCS-MV 4224 may be connected to the ADDERLink® INFINITY matrix system. This allows the user to control any 4 computers connected to the matrix network.
Technical details
Approvals / Compliance
UKCA, CE, FCC class A, TUV US & Canada
Video Resolutions
The system supports video resolutions up to UHD 4K (3840 x 2160 @ 30Hz) at 4:4:4 with 8 bits per color
Software Compatibility
Windows®, Linux®, Mac host computer OS’s
Console Connections
Approvals / Compliance
UKCA, CE, FCC class A, TUV US & Canada
Video Resolutions
The system supports video resolutions up to UHD 4K (3840 x 2160 @ 30Hz) at 4:4:4 with 8 bits per color
Software Compatibility
Windows®, Linux®, Mac host computer OS’s

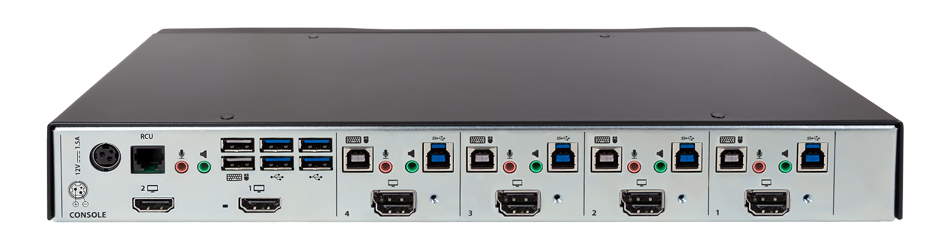

Console Connections
- 2x digital ports for HDMI®
- 2x USB 2.0 full speed Type A
- 4x USB3.0 Hi-speed Type A
- Audio 3.5mm/0.13” jack for microphone and headphones
- RJ12 serial port
- 4x dual ports for DisplayPort™/HDMI®
- 4x USB2.0 full speed Type B
- 4x USB 3.0 Hi-speed Type B
- Audio 3.5mm line in and out
- Audio hold button and status LED
- 4x Channel selection button and status LED
- 212 x 104 E-paper status display
- Robust metal construction
- 344mm/13.54”(W) x 44mm/1.73”(H) x 161mm/6.34”(D)
- Weight: 1.6kg/3.53lbs
- 100 - 240V AC, 47/63Hz
- 12V DC 30W output from power supply unit
- Operating temperature: 0ºC to 40ºC/ 32ºF to 104ºF
- Storage temperature: -20º to 60ºC/ -4º to 140ºF
- Humidity: 0-80% RH, non-condensing
