ADDERView - RD1716QIP
Keyboard drawer, 16port, IP, 17 inch TFT LCD panel, CATx - UK version
Catalogusprijs:
€ 2.874,00*
Dealer prijs - Aanmelden
Levertijd: Momenteel ongeveer 3-4 weken
Prijzen voor grotere hoeveelheden op aanvraag.
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Artikelnummer van de fabrikant:
RD1716QIP XX
Ons artikelnummer:
490286
Vragen? Wij adviseren u graag! → Contactformulier
Productinformatie "ADDERView - RD1716QIP"
The ADDERView RDX 5000IP is the complete server room solution with local and remote management.

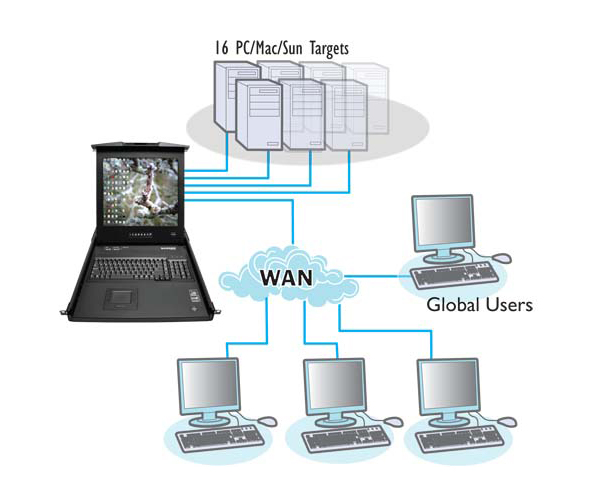

The 1U keyboard tray is available in most keyboard languages and features a high-quality Samsung SXGA 1280 x 1024 TFT LCD panel with touchpad control and advanced OSD for device selection. Control 16 computers directly from the taskbar along with 4 secure IP users. Expand to support up to 256 computers with CATx 5000 switches.
ADDER's CAM modules allow you to connect the switch to any type of server, including PC, Mac and Sun, via a CATx cable. Country code reporting, DDC and continuous keyboard and mouse emulation also ensure error-free operation in your unique installation.
Scope of delivery: ADDERView RD1716QIP, power supply unit, CD-ROM, mounting bracket, 8x screws, 8x washers, 6x M6 cage nuts
Optional accessories:
Computer Access Modules (CAM):
- This is the UK model (English keyboard + UK IEC)
The 1U keyboard tray is available in most keyboard languages and features a high-quality Samsung SXGA 1280 x 1024 TFT LCD panel with touchpad control and advanced OSD for device selection. Control 16 computers directly from the taskbar along with 4 secure IP users. Expand to support up to 256 computers with CATx 5000 switches.
ADDER's CAM modules allow you to connect the switch to any type of server, including PC, Mac and Sun, via a CATx cable. Country code reporting, DDC and continuous keyboard and mouse emulation also ensure error-free operation in your unique installation.
Scope of delivery: ADDERView RD1716QIP, power supply unit, CD-ROM, mounting bracket, 8x screws, 8x washers, 6x M6 cage nuts
Optional accessories:
Computer Access Modules (CAM):
- CATX-PS2 (PS/2 only)
- CATX-USB (USB only)
- CATX-SUNA (Sun incl. audio)
- CATX-CONSOLE (terminal server)
| Display size: | 17 |
|---|---|
| KVM Ports: | 6 Ports |
| Local Users: | 1 User |
| Network: | Single LAN |
Features
4 simultaneous IP users
Allows 4 global users to connect via IP to any of the 16 connected computers simultaneously.
Multi-platform capability and connectivity
USB / PS2 / SUN and serial connectivity on any type of server platform.
Serial Console Server (SCS)
ADDERView RDX can also be used as a serial console by simply connecting the CATX-CONSOLE computer access module. This gives you out-of-band access to CLI (Command Line Interface) devices as well as console access to network switches.
LDAP integration plus ADDER.Net management software
Automate the task of managing your network hardware and authenticating users against your existing LDAP infrastructure.
RS232 port
Use the built-in RS232 to control other external devices such as power management devices.
Configuration and expansion
The ADDERView RDX 5000 allows you to configure 16 separate users internally with unique access permissions, all stored in the switch. A CATx5000 can be cascaded from the unit to allow control of 256 computers from 64 IP users.
Ecopulse circuit
Ecopulse turns off unnecessary circuits when not required, reducing power consumption. This saves significant energy over the life of the product.
Encryption and authentication
The integrated enterprise KVM-over-IP switch uses AES128-bit encryption and RSA2048 authentication to ensure your control system remains secure at all times.
Intelligent video thresholding
ADDER's innovative active de-artifacting technology automatically calculates the ideal threshold for each computer or KVM switch, so video displays are updated with optimal immediacy - while "screen clutter" is kept to an absolute minimum.
Flexible screen scaling
ADDER solutions offer one-click screen scaling, allowing users to quickly adjust target devices running displays of any size and aspect ratio. ADDER solutions also allow users to easily override scaling when they need a non-scaled pixel-to-pixel mapping.
4 simultaneous IP users
Allows 4 global users to connect via IP to any of the 16 connected computers simultaneously.
Multi-platform capability and connectivity
USB / PS2 / SUN and serial connectivity on any type of server platform.
Serial Console Server (SCS)
ADDERView RDX can also be used as a serial console by simply connecting the CATX-CONSOLE computer access module. This gives you out-of-band access to CLI (Command Line Interface) devices as well as console access to network switches.
LDAP integration plus ADDER.Net management software
Automate the task of managing your network hardware and authenticating users against your existing LDAP infrastructure.
RS232 port
Use the built-in RS232 to control other external devices such as power management devices.
Configuration and expansion
The ADDERView RDX 5000 allows you to configure 16 separate users internally with unique access permissions, all stored in the switch. A CATx5000 can be cascaded from the unit to allow control of 256 computers from 64 IP users.
Ecopulse circuit
Ecopulse turns off unnecessary circuits when not required, reducing power consumption. This saves significant energy over the life of the product.
Encryption and authentication
The integrated enterprise KVM-over-IP switch uses AES128-bit encryption and RSA2048 authentication to ensure your control system remains secure at all times.
Intelligent video thresholding
ADDER's innovative active de-artifacting technology automatically calculates the ideal threshold for each computer or KVM switch, so video displays are updated with optimal immediacy - while "screen clutter" is kept to an absolute minimum.
Flexible screen scaling
ADDER solutions offer one-click screen scaling, allowing users to quickly adjust target devices running displays of any size and aspect ratio. ADDER solutions also allow users to easily override scaling when they need a non-scaled pixel-to-pixel mapping.
Technical details
Video modes
Support for standard video modes for PC, Sun and Mac.
Hardware compatibility
Video, mouse and keyboard for PC, Sun, Mac, RS / 6000, Alpha and SGI computers with upgradeable Computer Access Modules (CAMs) for PS / 2, USB or Sun Flash.
Operating system compatibility
Works with all currently known software and operating systems, including all versions of Windows, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.
Expandable platform
Cascade a CATxIP 5000 to expand the system to 256 computers and 64 global IP users.
Connections
Physical design
Power supply
Operating temperature
0 - 35 °C
Approvals
CE, FCC
Video modes
Support for standard video modes for PC, Sun and Mac.
Hardware compatibility
Video, mouse and keyboard for PC, Sun, Mac, RS / 6000, Alpha and SGI computers with upgradeable Computer Access Modules (CAMs) for PS / 2, USB or Sun Flash.
Operating system compatibility
Works with all currently known software and operating systems, including all versions of Windows, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.
Expandable platform
Cascade a CATxIP 5000 to expand the system to 256 computers and 64 global IP users.
Connections
- CATx computer connections: all RJ45 style
- Auto-sensing Ethernet network connection: RJ45
- Power connection: locking 3-pin connector (12 V DC, 5 A)
- RS232 triggered power switching and synchronisation: DB9 connector
Physical design
- Compact 1U rack-mountable metal enclosure construction
- Width: 589 mm, height: 44 mm, depth: 650 mm
- Weight: RD1716QIPxx 15 kg, RD1916QIPxx 17 kg
Power supply
- Mains adapter with IEC mains cable (included in delivery)
- Input: 100-240VAC 0.5A 50-60Hz
- Output: 12VDC 5A
Operating temperature
0 - 35 °C
Approvals
CE, FCC
