Advantech - ICR-2041
Industrial Entry-Level 4G Router with 1× ETH, No ACC
Catalogusprijs:
€ 261,00*
Dealer prijs - Aanmelden
Levertijd: Momenteel ongeveer 3-4 weken
Prijzen voor grotere hoeveelheden op aanvraag.
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Artikelnummer van de fabrikant:
ICR-2041
Vragen? Wij adviseren u graag! → Contactformulier
Productinformatie "Advantech - ICR-2041"
Industrial cellular router ICR-2041 is designed for wireless communication to enable connection of IP devices to a cellular network. Industrial M2M and IoT applications include kiosks, industrial PCs, HMIs, traffic controllers, meters, UPS systems, and much more. The peak downlink data rate for LTE Cat.4 is approximately 150 Mbps. Also in the uplink, LTE Cat.4 provides a peak data rate of 50 Mbps.
The router is equipped with one Ethernet port (LAN) and with digital I/O connectivity (1x DI, 1x DO). The router supports VPN tunnel creation using various protocols to ensure safe communications. The router provides diagnostic functions which include automatic monitoring of the wireless and wired connections, automatic restart in case of connection losses, and a hardware watchdog that monitors the router status.
Router is based on ICR-OS operation system. Open Linux platform enable wide possibilities of programming customer SW applications in Python, C/C++. Router supports uploading of RouterApps that would extend standard firmware functionalities. Existing app library ready for free download by customer contains already developed software apps to enhance specific router functionality including industrial protocol conversions, support of IoT platforms such as MS Azure, Cumulocity, ThingWorx and a lot more.
Scope of delivery: Advantech - ICR-2041
The router is equipped with one Ethernet port (LAN) and with digital I/O connectivity (1x DI, 1x DO). The router supports VPN tunnel creation using various protocols to ensure safe communications. The router provides diagnostic functions which include automatic monitoring of the wireless and wired connections, automatic restart in case of connection losses, and a hardware watchdog that monitors the router status.
Router is based on ICR-OS operation system. Open Linux platform enable wide possibilities of programming customer SW applications in Python, C/C++. Router supports uploading of RouterApps that would extend standard firmware functionalities. Existing app library ready for free download by customer contains already developed software apps to enhance specific router functionality including industrial protocol conversions, support of IoT platforms such as MS Azure, Cumulocity, ThingWorx and a lot more.
Scope of delivery: Advantech - ICR-2041
Features
- LTE Cat.4 with 3G fallback
- 1× SIM

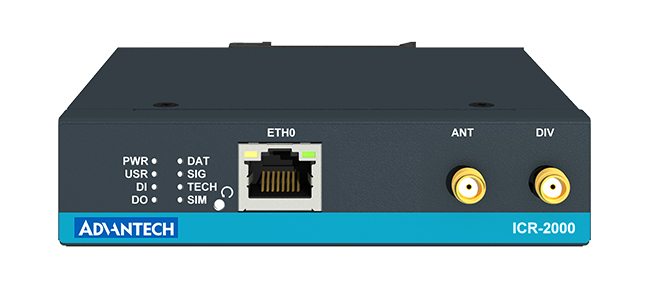

- 1× Ethernet, RJ45, 10/100 Mbps

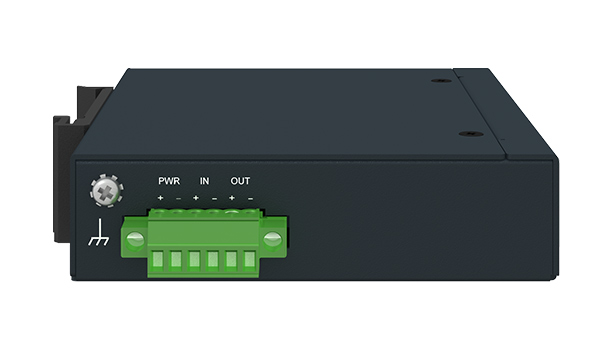

- 1× DI, 1× DO
- Wide operational temperature range
- Wall and DIN mount options
- Linux based OS & SW customization
- Carriers support: Verizon, AT&T, T-Mobile
Technical details
Region
NAM: Yes
Interface
ETH Port(s): 1
I/O: 1 x DI + 1 x DO
Antenna Connectors
Cellular Antennas: 2 x SMA
Power
Power Input (DC): 9 ~ 48 VDC
Environment
Temperature (Operating Range): -40 ~ 75°C (-40 ~ 167°F)
Humidity (Operating Range): 0~95%
Mechanism
Dimensions (W x H x D): 103 x 25 x 95 mm
Enclosure (Metal): Metal
Mounting (DIN-rail): Yes
Mounting (Wall): Yes
Software
Advances Software Tool: WA/DMP, WA/VPN
Region
NAM: Yes
Interface
ETH Port(s): 1
I/O: 1 x DI + 1 x DO
Antenna Connectors
Cellular Antennas: 2 x SMA
Power
Power Input (DC): 9 ~ 48 VDC
Environment
Temperature (Operating Range): -40 ~ 75°C (-40 ~ 167°F)
Humidity (Operating Range): 0~95%
Mechanism
Dimensions (W x H x D): 103 x 25 x 95 mm
Enclosure (Metal): Metal
Mounting (DIN-rail): Yes
Mounting (Wall): Yes
Software
Advances Software Tool: WA/DMP, WA/VPN
