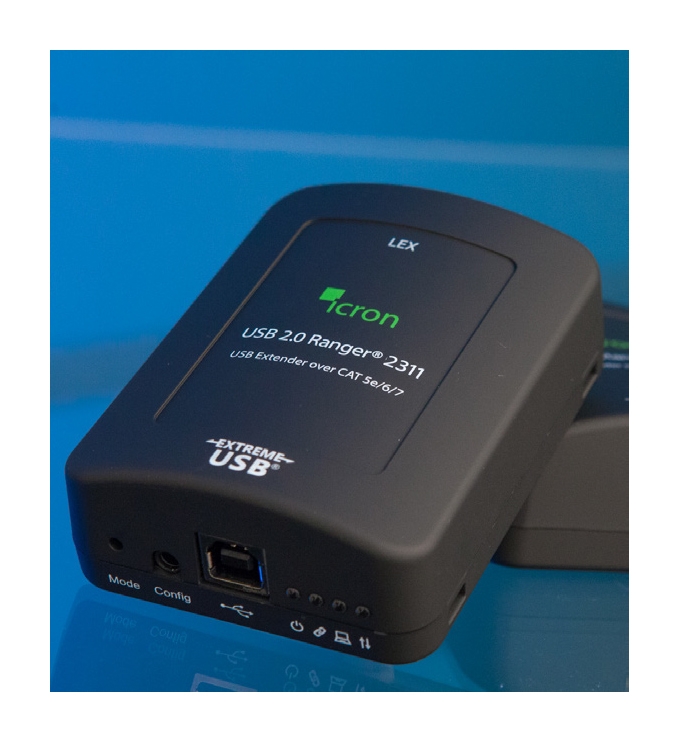

Icron USB 2.0 Ranger 2311 - 00-00402
1 port, extends USB 2.0 connections via CAT 5e/6/7 up to 100 metres with flexible power supply (local or remote)
Catalogusprijs:
€ 345,00*
Dealer prijs - Aanmelden
Nog 41 stuks beschikbaar, levertijd: Uit voorraad, onmiddellijk beschikbaar
Prijzen voor grotere hoeveelheden op aanvraag.
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Artikelnummer van de fabrikant:
00-00402
Ons artikelnummer:
760052
Vragen? Wij adviseren u graag! → Contactformulier
Productinformatie "Icron USB 2.0 Ranger 2311 - 00-00402"
The USB 2.0 Ranger 2311 allows users to extend USB 2.0/1.1 connections up to 100m over a single CAT 5e/6/7 cable.

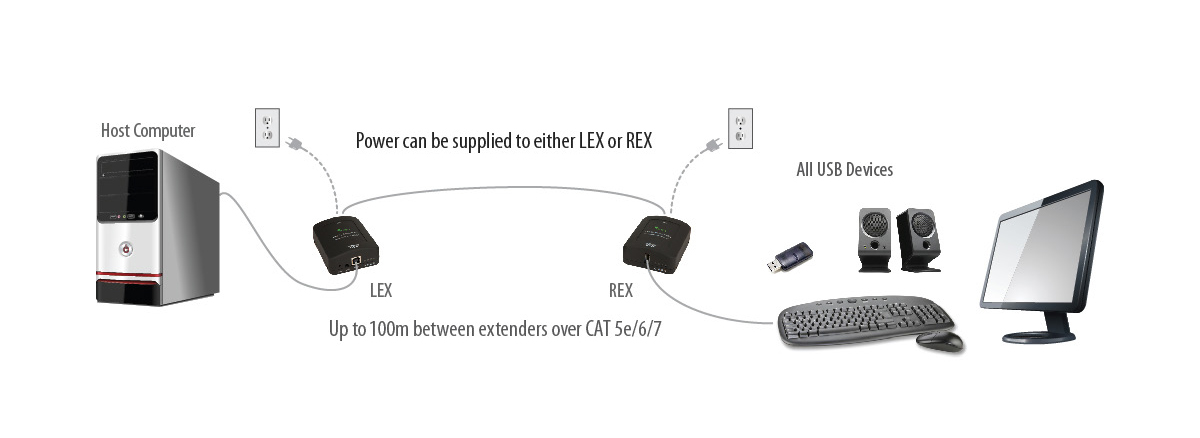

This USB 2.0 extender with flexible power supply offers installers the choice of applying power to either the LEX or the REX, wherever is most convenient. The Ranger 2311 is plug-and-play - no software drivers are required - and works with all major operating systems: Windows, macOS, and Linux.
In addition, this Extreme USB-based expansion system is ideal for use with all USB peripherals, including: keyboards, mice, interactive whiteboards, flash drives, hard drives, audio devices, webcams, and any other USB 2.0 or 1.1 device.
Scope of delivery: Local extender (LEX), remote extender (REX), USB cable, quick start guide, power adapter with cable.
This USB 2.0 extender with flexible power supply offers installers the choice of applying power to either the LEX or the REX, wherever is most convenient. The Ranger 2311 is plug-and-play - no software drivers are required - and works with all major operating systems: Windows, macOS, and Linux.
In addition, this Extreme USB-based expansion system is ideal for use with all USB peripherals, including: keyboards, mice, interactive whiteboards, flash drives, hard drives, audio devices, webcams, and any other USB 2.0 or 1.1 device.
Scope of delivery: Local extender (LEX), remote extender (REX), USB cable, quick start guide, power adapter with cable.
Port Number: | 1 Port |
---|
Features
- USB 2.0 extender with flexible power supply - connect the power supply to either the LEX or the REX
- Delivers up to 1 amp to the USB port
- Mass storage acceleration for bulk transfers from USB 2.0 devices
- Supports all USB 2.0/1.1 devices at up to 480 Mbps
- Two-year warranty
- ExtremeUSB feature set:
- Transparent USB extension
- True plug-and-play; no software drivers required
- Works with all major operating systems: Windows, macOS, and Linux
Technical details
Range
Speed
Power supply
LEX (Local Extender)
REX (Remote Extender)
Environmental conditions
Certifications
Support
Range
- Direct connection up to 100m via CAT 5e/6/7
Speed
- USB 2.0: up to 480Mbps
- USB 1.1: up to 12Mbps
Power supply
- Power supply: 100-240V AC input, 24V 1A DC output. To be connected to either LEX or REX
LEX (Local Extender)
- USB connection: 1 x USB socket type B
- Link connection: 1 x RJ45
- Dimensions: 65.0mm x 87.5mm x 30.0mm (2.6" x 3.4" x 1.2")
- Mounting: Slots for cable ties
- Housing material: Black ABS with rubberised coating
REX (Remote Extender)
- USB connection: 1 x USB socket type A
- Link connection: 1 x RJ45
- Available current: up to 1A to USB port
- Dimensions: 65.0mm x 87.5mm x 30.0mm (2.6" x 3.4" x 1.2")
- Mounting: slots for cable ties
- Housing material: Black ABS with rubberised coating
Environmental conditions
- Operating temperature: 0°C to 50°C (32°F to 122°F)
- Storage temperature: -20°C to 70°C (-4°F to 158°F)
- Operating humidity: 20 % to 80 % relative humidity, non-condensing
- Storage humidity: 10 % to 90 % relative humidity, non-condensing
Certifications
- EMC: FCC (Class A), CE (Class A)
- Environmental compatibility: RoHS2, REACH, conflict minerals
- Safety: Flammability V-0
Support
- Warranty: 2 years
