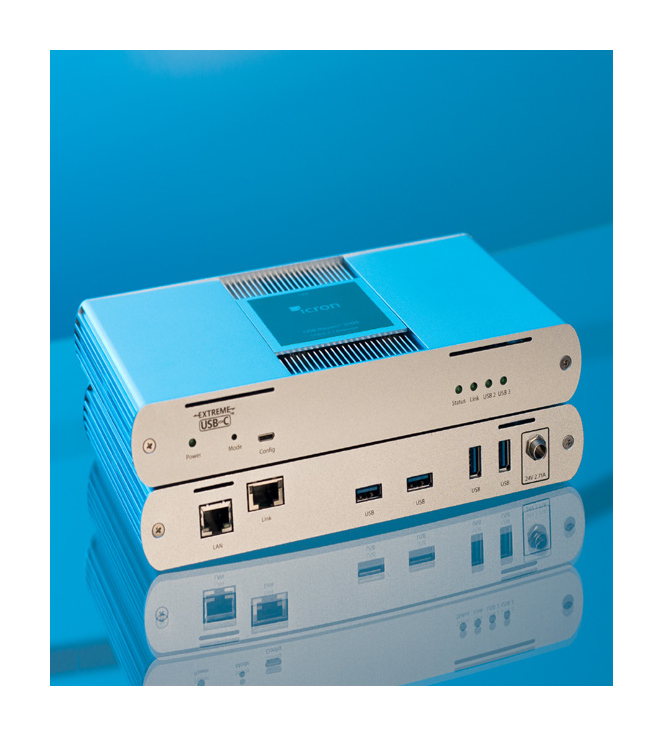

Icron USB 3-2-1 Raven 3104 - 00-00422
4 ports, extends USB 3-2-1 simultaneously via CAT 6a/7 up to 100 metres
Catalogusprijs:
€ 1.215,00*
Dealer prijs - Aanmelden
Nog 30 stuks beschikbaar, levertijd: Uit voorraad, onmiddellijk beschikbaar
Prijzen voor grotere hoeveelheden op aanvraag.
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Artikelnummer van de fabrikant:
00-00422
Vragen? Wij adviseren u graag! → Contactformulier
Productinformatie "Icron USB 3-2-1 Raven 3104 - 00-00422"
The Icron USB 3-2-1 Raven 3104 is the world's first USB 3.1 extender that allows users to extend USB 3.1 Gen 1 (5Gbps) device types as well as USB 2.0 and 1.1 devices via a point-to-point connection up to 100m over a single CAT 6a/7 cable. Applications include extending USB 3 conference cameras and audio devices for boardrooms and conference rooms. The Raven extension series has been successfully tested with most major USB 3.1 conference cameras in conjunction with major UC conferencing applications (Zoom, Teams, Skype).
This 4-port USB 3.1 extender supports data rates of up to 5Gbps and is plug-and-play - no software drivers required - for all major operating systems: Windows, macOS, Linux and Chrome OS.
In addition, this Extreme USB-C based USB 3.1 extender system is FCC/CE Class B certified and is ideal for use with all USB peripherals in addition to USB 3.1 conference cameras due to its backwards compatibility, including: flash drives, hard drives, keyboards, mice, interactive whiteboards, touchscreens, audio devices and other USB 3, 2 and 1 devices.
Scope of delivery: Local Extender (LEX), Remote Extender (REX), USB 3.1 Gen 1 Cable, LEX 24V DC 1A International Power Adapter, REX 24V DC 2.71A International Power Adapter, 2 x Power Cords, Quick Start Guide.
This 4-port USB 3.1 extender supports data rates of up to 5Gbps and is plug-and-play - no software drivers required - for all major operating systems: Windows, macOS, Linux and Chrome OS.
In addition, this Extreme USB-C based USB 3.1 extender system is FCC/CE Class B certified and is ideal for use with all USB peripherals in addition to USB 3.1 conference cameras due to its backwards compatibility, including: flash drives, hard drives, keyboards, mice, interactive whiteboards, touchscreens, audio devices and other USB 3, 2 and 1 devices.
Scope of delivery: Local Extender (LEX), Remote Extender (REX), USB 3.1 Gen 1 Cable, LEX 24V DC 1A International Power Adapter, REX 24V DC 2.71A International Power Adapter, 2 x Power Cords, Quick Start Guide.
| Port Number: | 4 Ports |
|---|
Features
- USB 3.1 Gen 1 data rate up to 5Gbps
- Built-in 4-port USB 3.1 hub that supports all USB 3.1, 2.0 and 1.1 devices simultaneously at full bandwidth; if Isochronous support is required, use the Raven 3104 Pro
- Up to 1.2A (6W) per USB port
- 100/1000Mbps Ethernet channel; LAN pass-through
- One cable, CAT 6a/7 up to 100m
- Point-to-point connection
- FCC and CE compliance (Class B)
- Two year warranty
- ExtremeUSB-C suite features:
- Transparent USB extension with support for USB 3, 2 and 1.
- True plug-and-play; no software drivers required
- Works with all major operating systems: Windows, macOS, Linux and Chrome OS
Technical details
Range
Speed
LEX (Local Extender)
REX (Remote Extender)
Environmental conditions
Certifications
Support
Range
- Direct connection up to 100 m via CAT 6a/7 cable
Speed
- USB 3.1: up to 5Gbps
- USB 2.0: up to 480Mbps
- USB 1.1: up to 12Mbps
LEX (Local Extender)
- 1x USB 3.1 Gen 1 type B socket
- 1x RJ45 Ethernet 100/1000 connector
- 1x RJ45 Ethernet link connector
- 24V 1A DC locking socket
- Housing material: silver anodised aluminium
- Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4" x 9.1" x 1.3")
- Weight: 920g (2.03 lbs.)
- Mounting: 4 holes for surface mounting or optional mounting kit available
REX (Remote Extender)
- 4x USB 3.1 Gen 1 type A sockets
- 1x RJ45 Ethernet 100/1000 connector
- 1x RJ45 Ethernet link connector
- 24V 2.71A DC locking socket
- Available current: up to 1.2A (6W) per USB port
- Housing material: silver anodised aluminium
- Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4" x 9.1" x 1.3")
- Weight: 990g (2.18 lbs.)
- Mounting: 4 holes for surface mounting or optional mounting kit available
Environmental conditions
- Operating temperature: 32°F to 122°F (0°C to 50°C)
- Storage temperature: -20°C to 70°C (-4°F to 158°F)
- Operating humidity: 20 % to 80 % relative humidity, non-condensing
- Storage humidity: 10% to 90% relative humidity, non-condensing
Certifications
- EMC: FCC (Class B), CE (Class B)
- Environmental: RoHS2/3, REACH, conflict minerals
Support
- Warranty: 2 years
