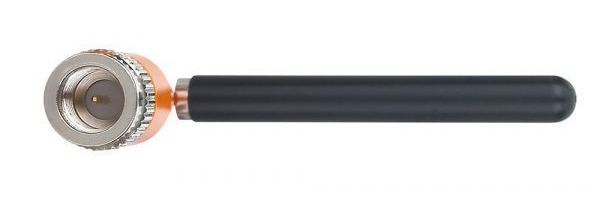

Inseego - Antenna Taoglas TG.08
Passive GPS/GLONASS/GALILEO/BeiDou & Cellular LTE Monopole Terminal Antenna
Catalogusprijs:
€ 18,00*
Dealer prijs - Aanmelden
Nog 19 stuks beschikbaar, levertijd: Uit voorraad, onmiddellijk beschikbaar
Prijzen voor grotere hoeveelheden op aanvraag.
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Artikelnummer van de fabrikant:
ACC-00005
Ons artikelnummer:
570247
Vragen? Wij adviseren u graag! → Contactformulier
Productinformatie "Inseego - Antenna Taoglas TG.08"
The compact TG.08 with hinged rotatable SMA connector, is an impressively high efficiency monopole antenna, which provides wide coverage among cellular and GNSS frequencies. With its cellular and GNSS function, plus compact design, TG.08 can fit and function perfectly with routers, vehicle tracking devices, telematics devices, and remote monitoring systems. It is also ideal for use with cellular modules with Assisted GPS functionality that can be implemented in various devices. This 72mm long monopole antenna works efficiently from 700MHz to 2700MHz, widely covering 4G/3G/2G bands, as well as GPS/GLONASS/Galileo /BeiDou. At its maximum efficiency when connected to ground plane, it can achieve 73% and 67% at GPS and LTE bands, respectively. As all monopole antennas, TG.08 works best while connecting directly to the ground-plane of the device main-board, or with the device’s metal enclosure. The robust brass hinge enables TG.08 to be oriented in all directions, providing users to maximize performance with minimum effort.
Scope of delivery: Inseego - ACC-00005
Scope of delivery: Inseego - ACC-00005
Technical details
Antenna Type: Cellular
Impedance: 50
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: 85°C
Mounting Style: Terminal
Termination Style: Connector
Antenna Connector Type: SMA
Cable Type: None
Connector Body Style: Straight
Polarity: Linear
Frequency Range: 689MHz To 2700MHz
Connector Polarity: Normal
Packaging: PE Bag, Carton
VSWR: 2:1
RoHS: Yes
Gain: 2
Length (mm): 10
Width (mm): 10
Height (mm): 72
Weight (g): 6
Antenna Type: Cellular
Impedance: 50
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: 85°C
Mounting Style: Terminal
Termination Style: Connector
Antenna Connector Type: SMA
Cable Type: None
Connector Body Style: Straight
Polarity: Linear
Frequency Range: 689MHz To 2700MHz
Connector Polarity: Normal
Packaging: PE Bag, Carton
VSWR: 2:1
RoHS: Yes
Gain: 2
Length (mm): 10
Width (mm): 10
Height (mm): 72
Weight (g): 6
