Inseego - SKYUS 160NE
IoT-Gateway
Catalogusprijs:
€ 399,00*
Dealer prijs - Aanmelden
Nog 82 stuks beschikbaar, levertijd: Uit voorraad, onmiddellijk beschikbaar
Prijzen voor grotere hoeveelheden op aanvraag.
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Artikelnummer van de fabrikant:
SK160NE-ACR
Ons artikelnummer:
570242
Vragen? Wij adviseren u graag! → Contactformulier

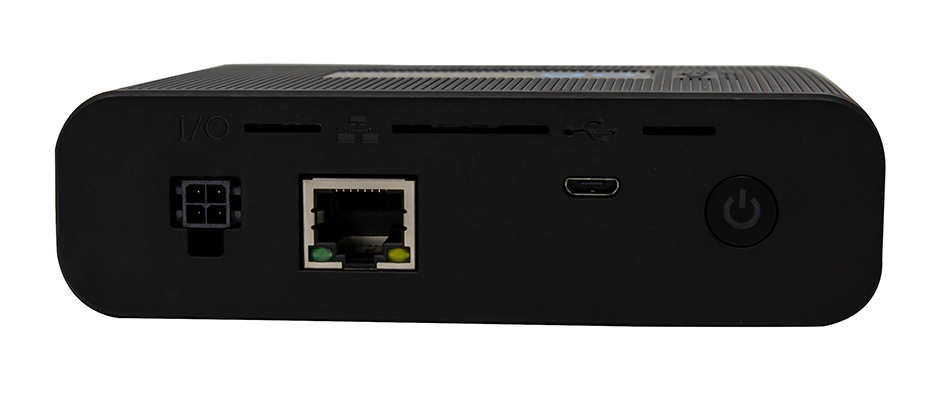

Productinformatie "Inseego - SKYUS 160NE"
For environments where reliable connectivity is paramount, the Skyus® 160 gateway delivers. With a small, rugged design and multi-carrier support, it keeps you connected almost anywhere for both primary and failover communications.
With Cat 6 LTE speeds (up to 300 Mbps downloads and 50 Mbps uploads) and a built-in battery backup, the Skyus 160 can support your most important workloads.
Use it for mobile applications like creating a vehicle hotspot, setting up a temporary job site or working from home. It’s also ideal for fixed environments such as SD-WAN installations for retail locations or branch offices.
Scope of delivery: Inseego - SKYUS 160NE
With Cat 6 LTE speeds (up to 300 Mbps downloads and 50 Mbps uploads) and a built-in battery backup, the Skyus 160 can support your most important workloads.
Use it for mobile applications like creating a vehicle hotspot, setting up a temporary job site or working from home. It’s also ideal for fixed environments such as SD-WAN installations for retail locations or branch offices.
Scope of delivery: Inseego - SKYUS 160NE
| Bandwidth: | UMTS (3G) |
|---|---|
| Certifications: | E-Mark |
| Connection: | Ethernet Port, USB Port |
| Options: | Bluetooth, LTE, WiFi |
| Power Supply: | 12V DC, 24 - 36V DC |
| Temperature Range: | Standard Temperature Range |
| Wireless Option: | Bluetooth, GNSS / GPS / Glonass / Beidou, WiFi |
Features
- Multiple data interfaces: Ethernet, USB, Wi-Fi
- 24/7/365 secure connectivity
- Multiple power interfaces: PoE, USB, built-in 12-hour 4400mAh backup battery for power failure protection
- 4-pin dual SIM slots
- Wi-Fi 5 and Bluetooth 5.0
- aGNSS (with active and passive GNSS antenna support)
Technical details
Network Connectivity
Wi-Fi
Chipset
Data Rates
GNSS
Data Interfaces
Bluetooth
Power
Backup Battery
Charging
Antennas
Mounting
Dimensions & Weight
User Interface
Operating Temperature
Networking
Systems Supported
Compliance
Network Connectivity
- 4G LTE CAT-6 B1-B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41 (Supports 2 Carrier Aggregation Downlink)
- 3G (HSPA+, UMTS) B1, B2, B3, B4, B5, B8v
Wi-Fi
- Wi-Fi 5 (802.11 a/b/g/n/ac)
- Supports up to 15 clients
Chipset
- Qualcomm® MDM9230
Data Rates
- 300 Mbps Downlink, 50 Mbps Uplink
GNSS
- aGNSS (GPS, GLONASS, Galileo)
- NMEA, SUPL 2.0 Support
- Local UDP
- Remote Streaming
Data Interfaces
- USB Micro-B (host or device)
- RJ45 Ethernet (PoE in)
- Wi-Fi
- Bluetooth
Bluetooth
- BT5.0, BLE Long Range, 20+ Clients, 200m Range (supports Marathon Products EDL-BT04 and EDL-BT05)
Power
- 5 ± 0.25 VDC @ 1A (powered USB 2.0 connection required) via USB Micro-B Connector
- 9-32 VDC via 4-pin Connector
- PoE in from PoE host
Backup Battery
- 4400 mAh Li-ion Rechargeable Pack
- 12 Hours of Backup Power
Charging
- 14.4W Qualcomm® Quick Charge™ 2.0 Charger
- USB Type A to C Cable
Antennas
- Two SMAs for External Cellular Antennas
- One SMA for External GNSS Antenna
- Internal Wi-Fi/BT Antennas
Mounting
- Integrated Mounting Tabs for #4 or #6 Screws
Dimensions & Weight
- 118 x 98 x 33 mm (4.65 x 3.85 x 1.31 in)
- 240 g (8.5 oz)
User Interface
- Skyus Web UI
Operating Temperature
- Normal Operation: -20– 50 °C (-4 – 122 °F)
- Storage: -20 – 60 °C (-4 – 140 °F)
Networking
- Port Forwarding/Filtering
- VPN Passthrough
- IP Passthrough
- MAC Filtering
- DHCP
Systems Supported
- Windows® 7 or newer
- Linux Ubuntu 14.04 or newer
- Linux Kernel 2.6.32 or newer
Compliance
- GCF, PTCRB (General), IC, cUL (Canada), CE RED, e-Mark, Halogen Free, REACH, RoHS, WEEE (EU), FCC, UL, Ozone Depleting, CA BCS, CA Prop 65 (USA)
