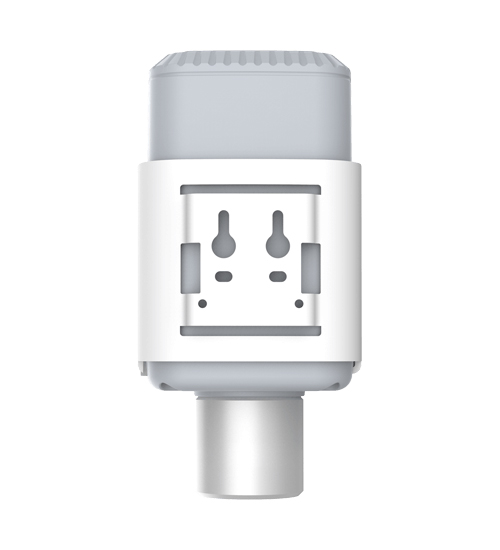

Milesight - EM500-CO2
CO2 sensor (4 in 1 - CO2, air pressure, humidity and temperature)
Catalogusprijs:
€ 240,00*
Dealer prijs - Aanmelden
Levertijd: Momenteel ongeveer 3-4 weken
Prijzen voor grotere hoeveelheden op aanvraag.
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Artikelnummer van de fabrikant:
EM500-CO2
Ons artikelnummer:
740031
Vragen? Wij adviseren u graag! → Contactformulier
Productinformatie "Milesight - EM500-CO2"
The EM500-CO 2 is used to measure the concentration of gaseous carbon dioxide (CO 2 ) in harsh environments. It is useful in applications where knowing the CO 2 level is important, e.g. in greenhouses, building ventilation, fruit and vegetable storage. It also supports the measurement of temperature, humidity and air pressure.
Scope of delivery: Milesight EM500-CO2
Scope of delivery: Milesight EM500-CO2
| Monitoring: | Air Flow & Air Pressure, Gas, Humidity, Temperature |
|---|
Features
- Integrated with multiple sensors such as CO2, temperature, humidity, etc.
- Ultra-wide transmission up to 10 km line of sight
- Waterproof IP66 housing for applications in harsh environments
- Built-in replaceable 19000 mAh battery that lasts for 10 years (without replacement)
- Equipped with NFC for easy configuration
- Compatible with standard LoRaWAN® gateways and network servers
- Fast and easy management with the Milesight IoT Cloud solution
Technical details
LoRaWAN
Measurement (CO2)
Physical properties
LoRaWAN
- Frequency: CN470 / RU864 / IN865 / EU868 / US915 / AU915 / KR920 / AS923
- Tx Power: 16 dBm (868) / 20 dBm (915) / 19 dBm (470)
- Sensitivity: -147 dBm at 300 Bit/s
- Mode: OTAA / ABP Class A
Measurement (CO2)
- Range: 400 - 5000 ppm
- Resolution: 1 ppm
- Accuracy: ± 30 ppm or ± 3% of reading
Physical properties
- Power supply: 19000 mAh Li-SOCl 2
- Operating temperature: 30 ° C to + 70 ° C
- Ingress protection: IP66
- Dimensions: 156.1 × 71 × 69.5 mm

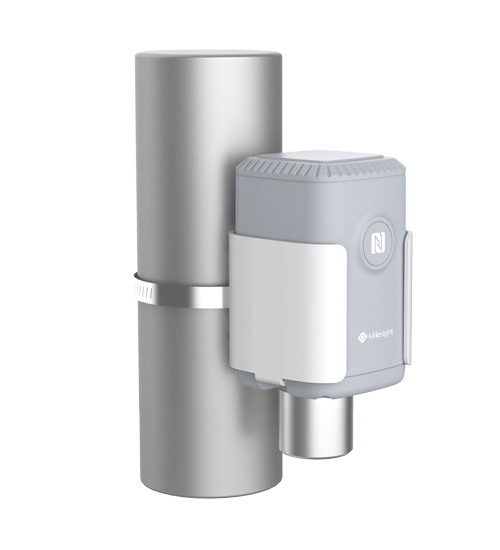

- Mounting: DIN rail, wall, pole mounting
