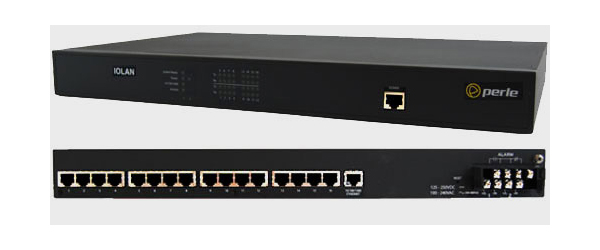

Perle Systems - IOLAN SDS16C DHV
Utility Terminal Server - 16x RJ45 serial ports, Dual universal high voltage AC/DC power supply
Catalogusprijs:
€ 7.355,00*
Dealer prijs - Aanmelden
Levertijd: Momenteel ongeveer 3-4 weken
Prijzen voor grotere hoeveelheden op aanvraag.
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Artikelnummer van de fabrikant:
04032440
Ons artikelnummer:
220863
Vragen? Wij adviseren u graag! → Contactformulier
Productinformatie "Perle Systems - IOLAN SDS16C DHV"
Electrical utility engineers and project managers that require a cost effective serial-to-Ethernet solution to help meet NERC-CIP compliance for the protection of critical cyberassets in substations must consider the IOLAN SDS HV/LDC Terminal Server. In addition to the most extensive security features available, these IOLAN’s are designed to meet harsh environments associated with Power Substations with attributes such as support for substation AC and DC voltage ranges, extended operating temperatures and meeting emission, immunity and safety approvals associated with substation IT equipment.
Scope of delivery: Perle Systems - IOLAN SDS16C DHV
Scope of delivery: Perle Systems - IOLAN SDS16C DHV
| Connection: | 10 / 100 / 1000-TX (RJ45) |
|---|---|
| Protocol: | ModBus, RS 232 / 422 / 485 |
| Security: | Enhanced |
| Serial Ports: | 16 Ports |
Features
- NERC CIP compliance features (EPCIP EU COM(2006)786);
- TACACS+, RADIUS for centralized authentication, authorization and accounting
- Support for alternate TACACS+ and RADIUS hosts
- Two factor strong authentication such as RSA’s SecureID
- HTTPS, SSL/TLS, SSH ( AES, 3DES ) session encryption
- Keystroke and data logging
- Provides the ability to display a customizable “Appropriate Use” login banner upon user access
- Secure dial-up
- Enable only the serial ports you need
- Meets IEC 61850-3 and IEEE 1613 ( IEEE C37 90 ) electrical substation EMI standards
- FIPS 140-2 – Cryptographic modules meet US Government NIST compliancy
- Universal High voltage: 88-300v DC or 85-265v AC – dual power models
- Dual Feed low voltage: 18 - 72v DC models
- Cisco RJ45 serial port pinout design enables connection to Cisco/Sun console ports using common serial “rolled” CAT5 cabling
- Encapsulate ModBus and DNP protocols over IP
- Modbus TCP to Modbus RTU/ASCII gateway
- High performance 400 Mhz, 750 MIPS, 32 bit processor with integrated hardware encryption processor for the best throughput on the market
- Next Generation IP support (IPv6 ) for investment protection and network compatibility
- TrueSerial™ packet technology – the most authentic serial connections across Ethernet ensures serial protocol integrity
- Primary/Backup host functionality enables automatic connections to alternate hosts should the primary TCP connection go down
- EasyPort Web – Access equipment serial console ports by using your java-enabled Internet browser
- TruePort – Perle’s com/tty redirector for serial based applications operates on Windows, Vista, Linux, Solaris, SCO and Unix
- Java-free browser access to remote serial console ports via Telnet and SSH
Technical details
- Processor: MPC8349E, 400 Mhz, 750 MIPS
- RAM MB: 64
- Flash MB: 16
- Number of Serial Ports: 16
- Serial Port Interface: Software selectable RS232 / RS485 / RS422 DTE on RJ45 - RS485: full and half duplex
- Sun/Solaris: Sun/Oracle ‘Solaris' Safe - no "break signal" sent during power cycle causing costly server re-boots or downtime
- Serial Port Speeds: 50bps to 230Kbps with customizable baud rate support
- Data Bits: Configurable for 5,6,7 or 8-bit protocol support, Use TruePort to transparently pass 9-bit serial data
- Parity: Odd, Even, Mark, Space, None
- Flow Control: Hardware, Software, Both, None
- Serial Port Protection: 15Kv Electrostatic Discharge Protection (ESD)
- Local Console Port: RS232 on RJ45 with DB9 adapter (provided)
- Network: Dual 10/100/1000-base TX Ethernet RJ45, Software selectable Ethernet speed 10/100/1000 Auto, Software selectable Half/Full/Auto duplex
- Failsafe Alarm Relay: 3A@24v DC. Normally open contacts closed by IOLAN when active and opened upon alarm condition or power failure
- Dual Power Supply: Terminal Block with screw terminals accommodating a #6 ring terminal for each power source. Protective cover provided
- Nominal Input Voltage: 125V DC / 250V DC or 100V AC / 240V AC
- Input Voltage Range: 88-300V DC or 85-265V AC
- AC Input Frequency: 47-63Hz
- Current Consumption @ 125v DC (Amps): 0.08
- Current Consumption @ 250v DC (Amps): 0.05
- Current Consumption @ 115v AC (Amps): 0.2
- Current Consumption @ 230v AC (Amps): 0.14
- Typical Power Consumption (Watts): 12.5
- Chassis Ground: Grounding screw for a #10 ring terminal
- LEDs: Power, System Ready, Network Link activity, Serial: Transmit and Receive data per port
- Heat Output (BTU/HR): 42.7
- MTBF (Hours): 105,368 (Calculation model based on MIL-HDBK-217-FN2 @ 30 °C)
- Operating Temperature: -40°C ambient for 16 hours and +70°C ambient for 16 hours without use of fans
- Storage Temperature: -40°C to 85°C, -40F to 185F
- Humidity: 5 to 95% (non condensing) for both storage and operation.
- Case: SECC Zinc plated sheet metal (1 mm)
- Ingress Protection Rating: IP30
- Mounting: 1U - 19" rack, front and rear mounting hardware included, DIN Rail mounting kit optional
- Weight: 3.40 kg
- Dimensions: 1U Rack form factor - 26.4 x 43.4 x 4.4 (cm), 10.38 x 17.1 x 1.75 (in)
