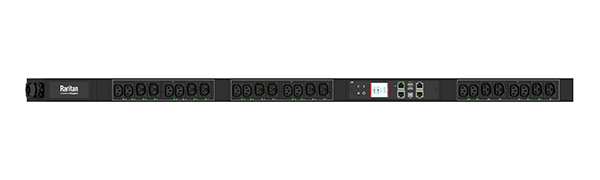

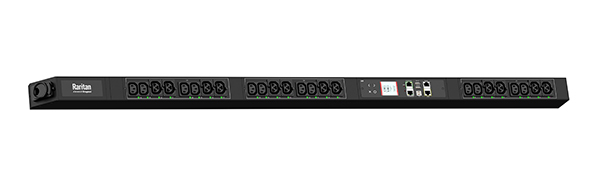

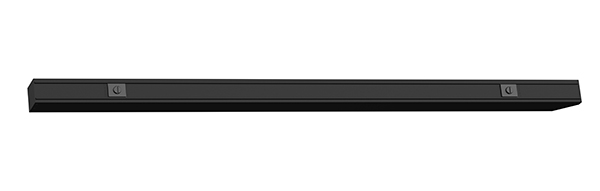

Raritan - PX4-5538-E8
400V, 3-Phase Wye (L-N), 11.1kVA, 16A
Catalogusprijs:
€ 2.283,00*
Dealer prijs - Aanmelden
Prijzen voor grotere hoeveelheden op aanvraag.
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Phone: +31 (0) 6 512 97 427 or e-mail: shop@s-connect-benelux.com
Artikelnummer van de fabrikant:
PX4-5538-E8
Ons artikelnummer:
212158
Vragen? Wij adviseren u graag! → Contactformulier
Product information "Raritan - PX4-5538-E8"
3Ph, 400V, 16A, 24 Outlets: 12 x IEC320 C13, 10A; 12 x Cx, 16A; Input: IEC 60309 3P+N+E, 0U, 11.1kVA, Outlet Metered and Switched, iX controller with 2 x 10/100/1000 ETH port, 2 x USB-A, 1 x USB-B, RJ-45 Sensor and PDU Link port
PACKAGE CONTENTS: Rack PDU PX4-5538-E8
Features
- Energy Metering: Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
- Metering Accuracy: Class 0.5 meter (see page 3 for details)
- Metering per Input Line: Yes
- Metering per Branch Circuit Breaker: No
- Metering per Output Receptacle: Yes
- Remote Outlet Switching: Yes
- Power Quality Monitoring: Voltage and Current Harmonic Distortion; Distortion Power Factor; Voltage Dip and Voltage Swell; Neutral Current, Current Inrush, Crest Factor
- Outlet Power Distribution: Alternating Branch
- Replaceable Controller: Yes, hot-swappable
- Environmental Sensor Ready: Yes
- Networking: Gigabit (10/100/1000 BaseT) Ethernet port; Secondary, redundant (10/100/1000 BaseT) Ethernet port; Optional Wi-Fi (802.11a/b/g/n)
- Remote Management: HTTP(s); SSH (CLI); Telnet; RS-232 (Serial); SNMP version v2/v3; SMTP; JSON-RPC API; MODBUS-TCP; Redfish API
- Cascading: Yes, Max 16 PDUs can be daisy chained using a USB connection and 32 PDUs using Ethernet connection
- Linking: Yes, a maximum of 8 PDUs can be linked using the PDU Link Port; PDU 1 is defined as the Primary PDU and can link up to 7 additional PDUs, called Link PDUs, totaling 8 PDUs
Specifications
INPUT
- Input Plug: IEC 60309 3P+N+E 6h 16A (4P5W)
- Cord Length: 3 meters (9.84 feet) standard
- Cord Entry Bottom-front feed
- Number of Power Cords: 1
- Input Current, Maximum: 16A
- Input Current, Rating: 16A
- Input Voltage, Nominal: 415V 3Φ
- Input Voltage, Rated: 380 - 415V 3Φ
- Input Frequency: 50/60Hz
- Power Capacity: 10.6kVA at 380V, 11.5kVA at 415V
OUTPUT
- Voltage, Nominal: 230V
- Voltage, Rated: 220 - 240V
- Receptacles (Output Connections): (12) IEC320 C13, 10A; (12) Cx, 16A
- Outlet Indicators: Yes, R/G/B LEDs; Outlet Powered On/Off, Above/Below
Threshold, Outlet Service Mode - Outlet On/Off, Suspect
Outlet/Trip Forensics - Outlet Off, Circuit Breaker Trip/Fuse
Blown - Outlet On/Off, Boot Up Sequence - Outlet Locking: No
- SecureLock (P-lock) Support: No
- Overload Protection: N/A
PHYSICAL
- Color: Black powder coat (custom colors available)
- Material of Construction: Extruded Aluminum
- Unit Dimensions (WxDxH): 2.2" x 2.6" x 51.1" ; 56mm x 65mm x 1298mm
- Unit Weight: 5.01 kg
- Shipping Dimensions (WxDxH): 10.04" x 4.92" x 57.44" ; 255mm x 125mm x 1459mm
- Shipping Weight: 7.37 kg
- Mounting: Tool-less button mount
ENVIRONMENTAL
- Operating Temperature: 60°C
- Operating Relative Humidity: 5% to 95% (non-condensing)
- Operating Elevation: 0 to 3048m; 0 to 10,000ft
- Storage Temperature: -30 to 80°C/ -22 to 176°F
- Storage Relative Humidity: 0% to 95%
- Storage Elevation: 0 to 15,000m; 0 to 50,000ft
CONFORMANCE
- Regulatory Approvals: CE, Canada ICES-003, Part 15 Class A of the FCC rules, RoHS compliant
- Warranty: 2-year manufacturer warranty
ACCURACY
| ACCURACY | ||
|---|---|---|
| Input Measurement | Output Measurement | |
| LCD & GUI Current | ±0.2% at 0.01 A resolution | ±0.2% at 0.01 A resolution |
| Voltage | ±0.2% at 0.1 V resolution | ±0.2% at 0.1 V resolution |
| Voltage, Neutral | ±1% at 0.1 V resolution | n/a |
| Current, Neutral | ±0.5% at 1% FS resolution (FS is PDU ampere rating) |
n/a |
| Active Power | ±0.5% at 1 W resolution | ±0.5% at 1 W resolution |
| Apparent Power | ±0.5% at 1 VA resolution | ±0.5% at 1 VA resolution |
| Reactive Power | ±1% at 1 VA reactive resolution | ±1% at 1 VA reactive resolution |
| Power Factor | ±1% at 0.01 resolution | ±1% at 0.01 resolution |
| Crest Factor | ±1% at 0.1 resolution | ±1% at 0.1 resolution |
| Active Energy | ±0.5% at 0.1 kWh resolution | ±0.5% at 0.1 kWh resolution |
| Apparent Energy | ±0.5% at 0.1 kVAh resolution | n/a |
| Reactive Energy | ±1.0% at 0.1 kVAh resolution | ±1.0% at 0.1 kVAh resolution |
| Voltage, Harmonic Distortion | 1.0% | 1.0% |
| Current, Harmonic Distortion | 5.0% | 5.0% |
| Branch Measurement | ||
| Current | ±1% at 0.01 A resolution | |
Control Panel
FEATURES
- Controller Version: iX9
- Swappable/Replaceable: Yes, hot-swappable
- Onboard Display: Voltage, current, or active power (per line, or per receptacle /outlet); Alarms; Configuration information (name, ratings, IP/Networking information); Auto-flip orientation
- SmartSensors: Yes, compatible sensors: Temperature, Humidity, Airflow, Differential Air Pressure, Water/Leak, Dust/Particle, Proximity/Motion, Vibration, and Sensor Hubs
- SmartLock: Yes, compatible sensors: Contact and Contact Closure
PANEL FEATURES
- Control Buttons: Navigate to the menu in the manual mode (Up, Down, Back, or Switch between automatic and manual modes, OK)
- Multi-Color LCD: Shows information on the device, built-in components, and connected peripheral devices
- Reset Button: Restarts the device's firmware without any loss of power to outlets
- Dual Networking Gig E 10/100/1000 Ethernet Ports: Supports up to 1000 Mbps; also supports extended cascading
- Dual (2) USB-A Ports: Supports USB-A wireless LAN adapters; iOS mobile devices; cascading for sharing a network connection. Power rating 5V/500mA
- USB-B Port: Supports CLI and cascading for sharing a network connection
- PDU Link Port: For power sharing, cascading, and current monitoring
- Sensor Port: RJ45 connector; Power/control sensor packages/actuators, current monitoring; also supports Sensor Hubs
