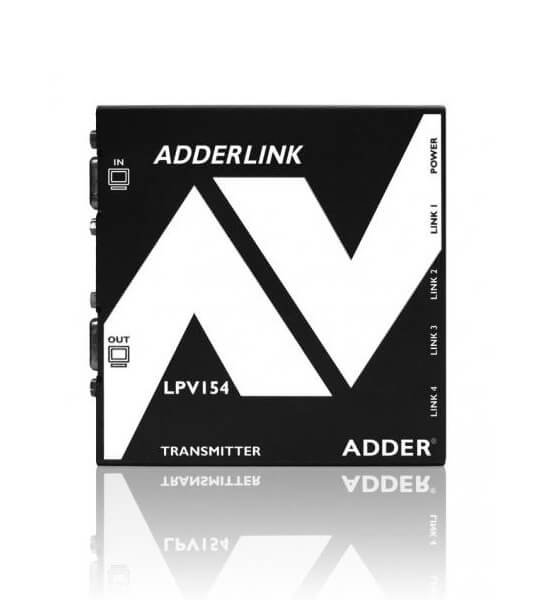

ADDERLink - ALPV154T
Transmitter (4 port) for ADDERLink - ALPV150
Artikelnummer van de fabrikant:
ALPV154T
Ons artikelnummer:
490341
Vragen? Wij adviseren u graag! → Contactformulier
Product is End of Life!
Vervolgproduct:
Productinformatie "ADDERLink - ALPV154T"
This digital signage extender is possibly the easiest to install point-to-point extender available today. Transferring power to the receiver via the cable eliminates the need for additional power supplies and sockets at the screen. A 4-way transmitter is available for point-to-multipoint transmission.
Optional accessories:
- Requires Receiver (receiver unit) - ADDERLink - ALPV150R
Optional accessories:
- ALAV-RMK-FASCIA: Rack-mounting plate for local/remote unit
- ALAV-RMK-CHASSIS: 19" rack-mounting case
| Graphic Port: | DVI, HDMI, VGA |
|---|
Features
Video performance
To avoid cable clutter, the ADDERLink LPV150 is designed to be powered via a USB port on your computer. In addition, this power is also transmitted via the CATx cable alongside the video, which in turn supplies power to your receiver unit.

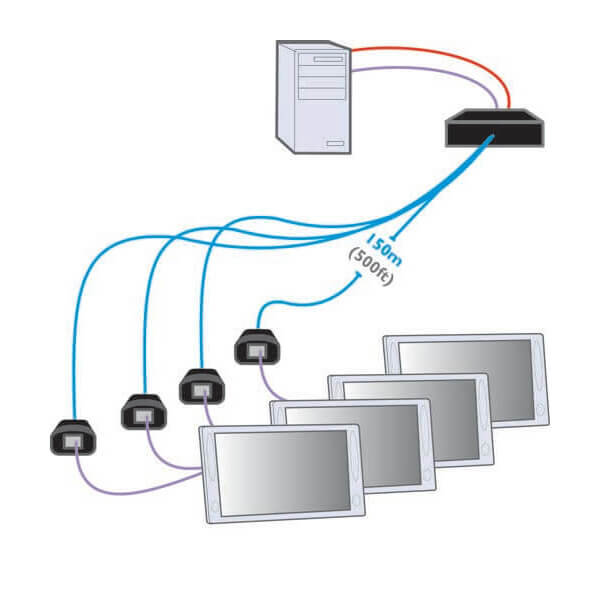

4-way transmitter for point-to-multipoint
The ALPV154T can use the same HD input and transmit to 4 different screens connected via the ALPV150R receivers. The unit has a feed-through port that allows local display, or you can cascade another ALAV154T to provide 8 screens.
Adjusting the Video Sharpness
The remote module has a video adjustment screw to control the sharpness of the image on the screen.
Absolutely Simple
Getting started with professional digital signage has never been easier. Simply plug the transmitter's VGA connector into your computer and USB port. Then plug the receiver unit into your screen. Finally, connect the two units with a CATx cable and you're done. Now deliver your message to clients, customers, staff or whoever you want.
Advanced EDID cloning
The ADDERLink LPV allows the user to clone the EDID (Extended Display Identification Data) from a display or use a standard EDID. This approach allows for maximum compatibility while providing a plug-and-play experience for most applications.
Rack mountable
The LPV154T units can be rack-mounted using the AdderLink high-density rack enclosure.
Video performance
- Full HD 1080p, 1080i and 720p
- Distances up to 150 m
To avoid cable clutter, the ADDERLink LPV150 is designed to be powered via a USB port on your computer. In addition, this power is also transmitted via the CATx cable alongside the video, which in turn supplies power to your receiver unit.
4-way transmitter for point-to-multipoint
The ALPV154T can use the same HD input and transmit to 4 different screens connected via the ALPV150R receivers. The unit has a feed-through port that allows local display, or you can cascade another ALAV154T to provide 8 screens.
Adjusting the Video Sharpness
The remote module has a video adjustment screw to control the sharpness of the image on the screen.
Absolutely Simple
Getting started with professional digital signage has never been easier. Simply plug the transmitter's VGA connector into your computer and USB port. Then plug the receiver unit into your screen. Finally, connect the two units with a CATx cable and you're done. Now deliver your message to clients, customers, staff or whoever you want.
Advanced EDID cloning
The ADDERLink LPV allows the user to clone the EDID (Extended Display Identification Data) from a display or use a standard EDID. This approach allows for maximum compatibility while providing a plug-and-play experience for most applications.
Rack mountable
The LPV154T units can be rack-mounted using the AdderLink high-density rack enclosure.
Technical details
Video resolution
Maximum 1920 x 1200 at 60 Hz
Extension distance
150 meters for 1920 x 1080 at 60 Hz
Maximum cable offset allowed
25 ns above maximum cable length. Recommend cables with low offset over 50 meters.
O/S compatibility
Operating system independent
Connectors

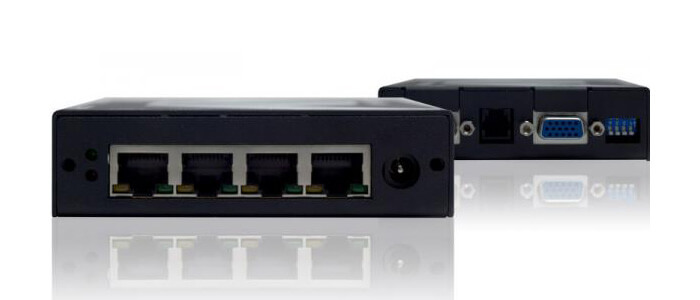

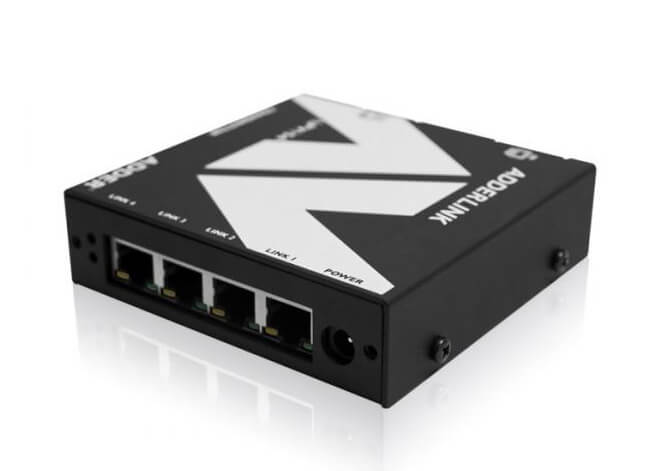

USB type A, 15-pin VGA and one RJ45 connector. (ALPV150P) 2 x 15-pin VGA, 4 x RJ45, 1 x power supply, 1 x 4P4C RS232. (ALPV154T)
Power
LPV150P USB power supply (max. 500 mA at 5 V)
LPV154T 5 V at 2.5 A, power supply included in delivery
Physical design
Transmitter
Steel housing: 100 mm (W), 100 mm (L), 25 mm (D)
Operating temperature
0-40 ° C.
Approvals
CE, FCC
Video resolution
Maximum 1920 x 1200 at 60 Hz
Extension distance
150 meters for 1920 x 1080 at 60 Hz
Maximum cable offset allowed
25 ns above maximum cable length. Recommend cables with low offset over 50 meters.
O/S compatibility
Operating system independent
Connectors
USB type A, 15-pin VGA and one RJ45 connector. (ALPV150P) 2 x 15-pin VGA, 4 x RJ45, 1 x power supply, 1 x 4P4C RS232. (ALPV154T)
Power
LPV150P USB power supply (max. 500 mA at 5 V)
LPV154T 5 V at 2.5 A, power supply included in delivery
Physical design
Transmitter
- High-impact injection moulding 45 mm (W), 63 mm (L), 21 mm (D) - without cable
- High-impact injection moulding 45 mm (W), 63 mm (L), 21 mm (D) - without cable
Steel housing: 100 mm (W), 100 mm (L), 25 mm (D)
Operating temperature
0-40 ° C.
Approvals
CE, FCC
