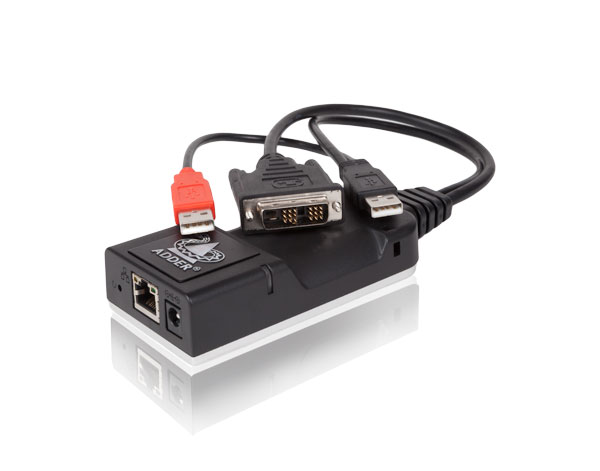

ADDERLink INFINITY - ALIF100T-DVI
Computer Access Module with DVI connection
Artikelnummer van de fabrikant:
ALIF100T-DVI
Ons artikelnummer:
490454
Vragen? Wij adviseren u graag! → Contactformulier
Product is End of Life!
Vervolgproduct:
ALIF101T-DVI oder ALIF101T-DP
Productinformatie "ADDERLink INFINITY - ALIF100T-DVI"

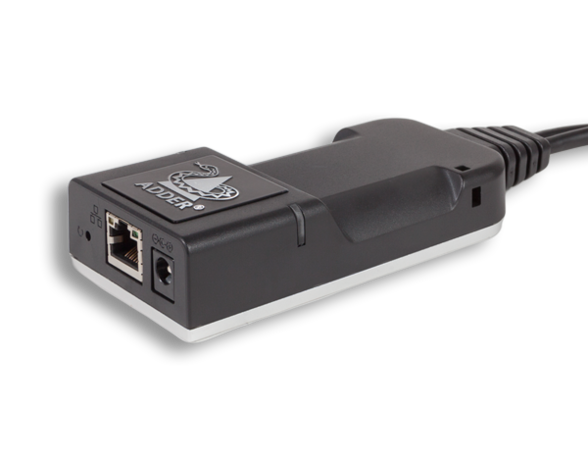

ADDERLink INFINITY 100T (ALIF100T) is a ZeroU high performance IP KVM extender (keyboard, video, mouse) and / or matrix that enables the use of standard IT infrastructure to remove computers from the user environment.
Optional accessories:
- Zero U form factor
- IP-based: Use your existing network
- USB power supply
- Energy efficient
- Supports multiple video resolutions
- Easy to retrofit into existing infrastructure
- Plug and Play
Optional accessories:
- PSU-IEC-5VDC-2.5A: 12.5W power adapter
| Graphic Port: | DVI |
|---|---|
| Keyboard & Mouse: | USB |
Features
- ZeroU size: The ADDERLink INFINITY 100T (ALIF100T) requires ZeroU rack space in the server room, allowing for ultimate flexibility and easy installation

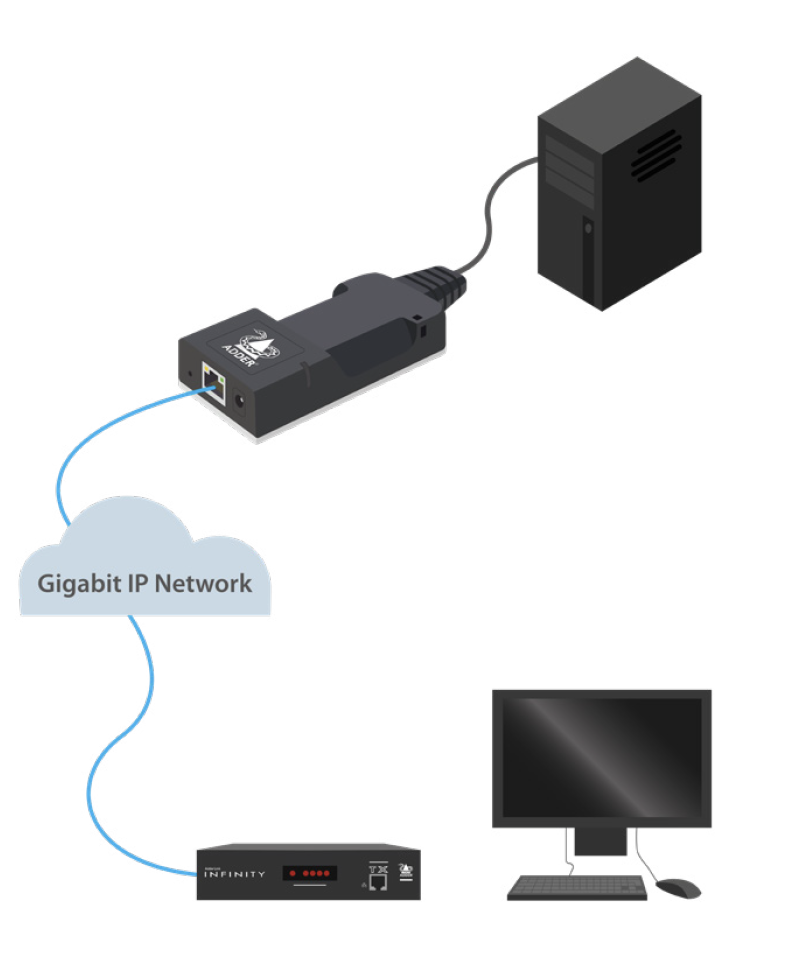

- IP-based: Use your existing network infrastructure to extend or structure your computing resources to your users
- USB-powered: The unit can be powered via USB. This means that no external power supply needs to be provided. Options for powering via an external or redundant power supply are also available
- Low power consumption: The unit requires less than 3 watts and can be powered via USB. This means that less than a quarter of the power can be consumed compared to other solutions
- Multiple video options: The system supports resolutions up to 1920 x 1200 at 60 Hz via DVI, DisplayPort and VGA interfaces.
- USB 1.1: Allows connection of any USB user interface device from mouse and keyboard to graphics tablets, jog shuttles, joysticks and 3D explorers

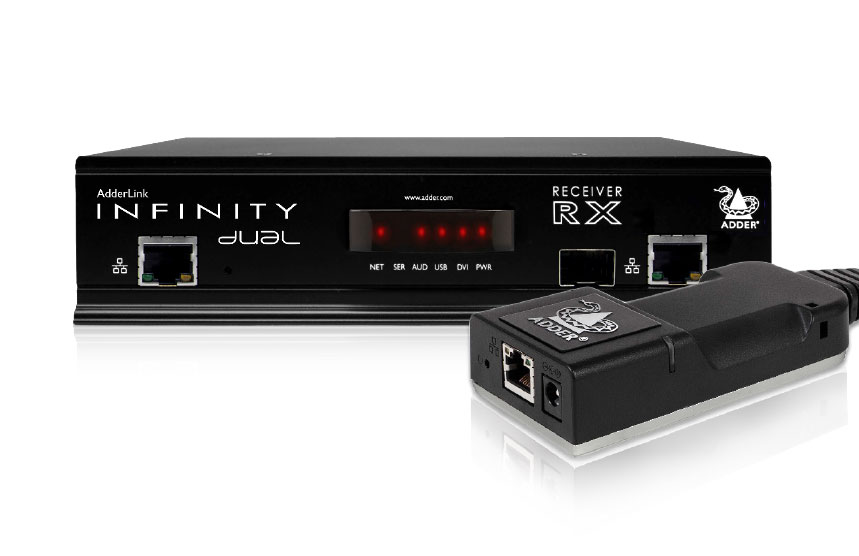

- Seamless integration with the ADDERLink INFINITY range: The ALIF100T can be seamlessly integrated into your existing ADDERLink INFINITY setup, replacing or working with your existing ALIF endpoints
- Perfect digital video: The ALIF100T uses a spatially lossless coding system with 1: 1 pixel mapping. The digital video received matches the digital video leaving the remote computer to ensure the best possible picture and colour accuracy
- USB audio: The system delivers USB stereo audio (line in, line out) digitally over the network
- EDID management: The system has intelligent EDID management that can either return the actual characteristics of the monitor to the computer or set controlled resolutions
- Digital KVM matrix: By adding the ADDERLink INFINITY Management (AIM) system, you can turn multiple point-to-point extenders into a matrix system that allows each workstation to connect to any computer connected to the network. For more information, see the AIM page on the Adder website
Technical details
Operating / storage conditions
Operating temperature: 0 to 50ºC / 32 to 122ºF
Storage temperature: -10 to 60ºC / 14 to 140ºF
Relative humidity during storage and operation: 10-90% non-condensing
Altitude: <3000 m
MTBF: >500,000 hours
Power
USB power supply: 2 x USB 2.0 (2x 500 mA at 5 V) 5W
External power supply: 5 VDC, 1 A (LPS)
Typical power consumption: 3 W BTU: 10.2 BTU / h
Dimensions
Dimensions: (L) 110 mm / 4.3 "x (W) 55 mm / 2.17" x (D) 25 mm / 1 "with 30 cm / 12" cable length
Weight: 0.2 kg
Material: ABS and aluminium construction

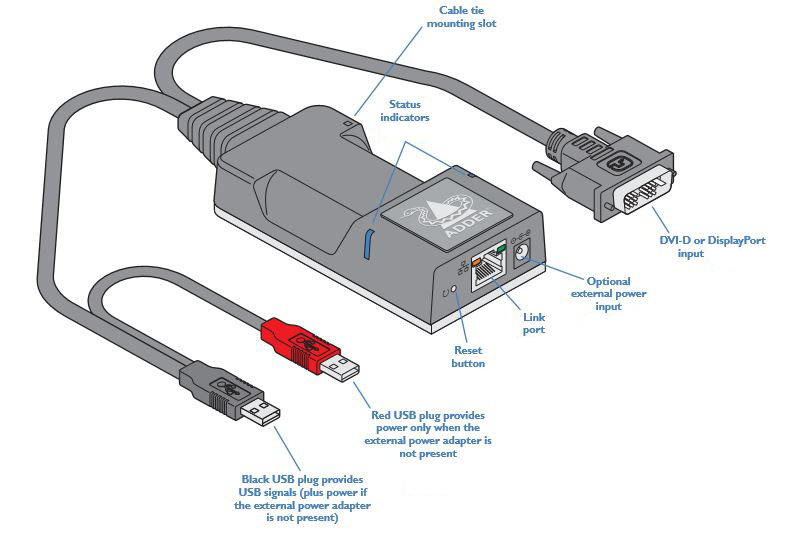

Connections
Computer: DVI-D, DisplayPort or VGA
Ethernet: 1 x 8p8c (RJ45)
Power supply: 2.5 mm socket
2x USB type A
Specification
USB: USB1.1 full and low speed (no HS support)
USB functions: Keyboard, mouse and touch
USB device as: 7- or 13-port hub
Maximum video resolution: Up to 1920 x 1200 at 60 Hz
Audio: Line-in / Out USB audio 2 channel 16 bit 48 kHz.
DisplayPort ™ Audio: None
Ethernet: 1 GbE (no 10/100 support) For DisplayPort ™ version, the source must be DisplayPort ™ Dual-Mode (DP ++) compatible.
Packaging box
Dimensions: (L) 292 mm (W) 245 mm / 9.6 in (D) 55 mm / 2.1
inch Weight: 0.5 kg
Approvals / Compliance
CE and FCC: For the complete list, please visit the compliance web page.
Recommendations for cable types
Cat5e and higher
Cable length rules
Ethernet specification rules apply to a maximum run of 100 m
